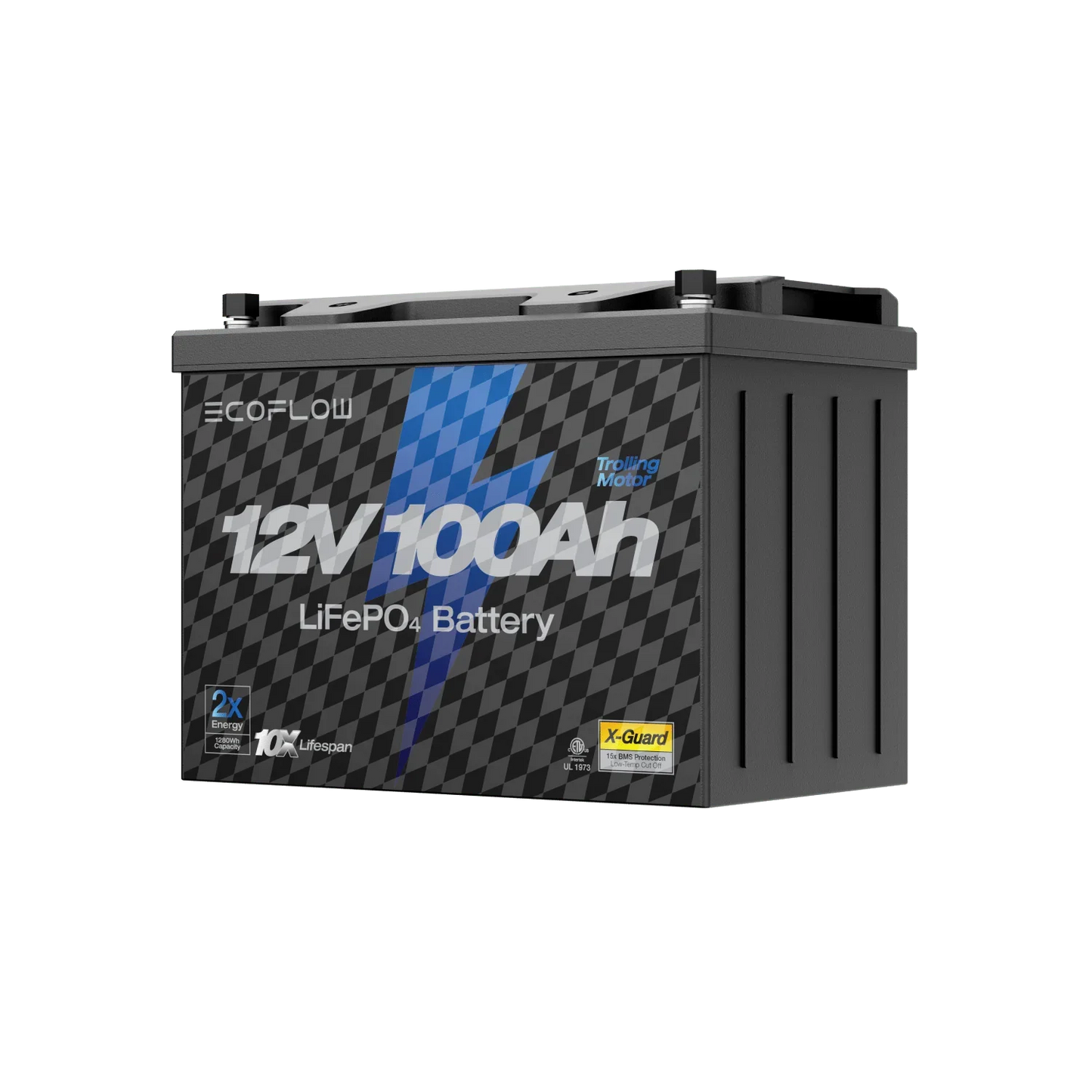

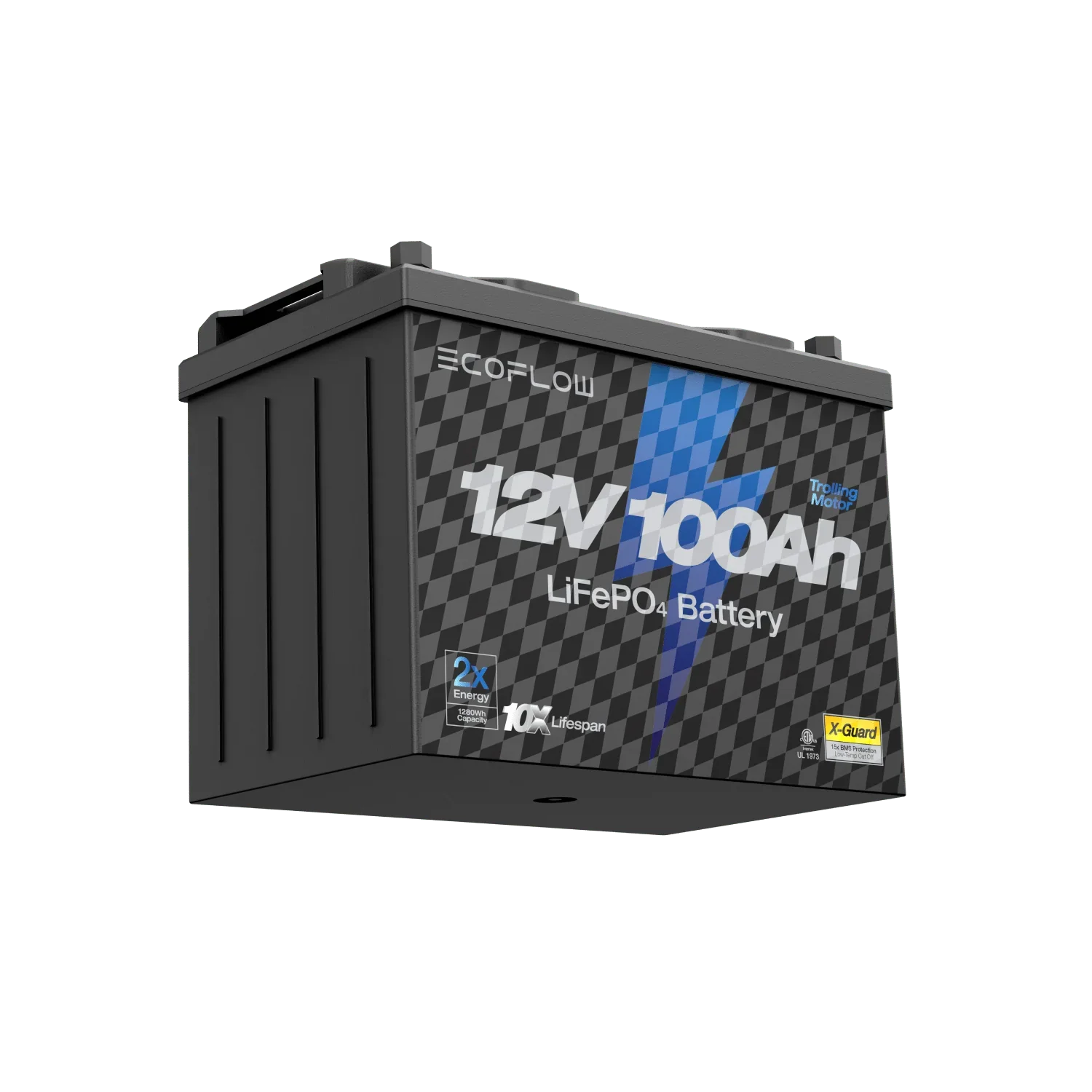

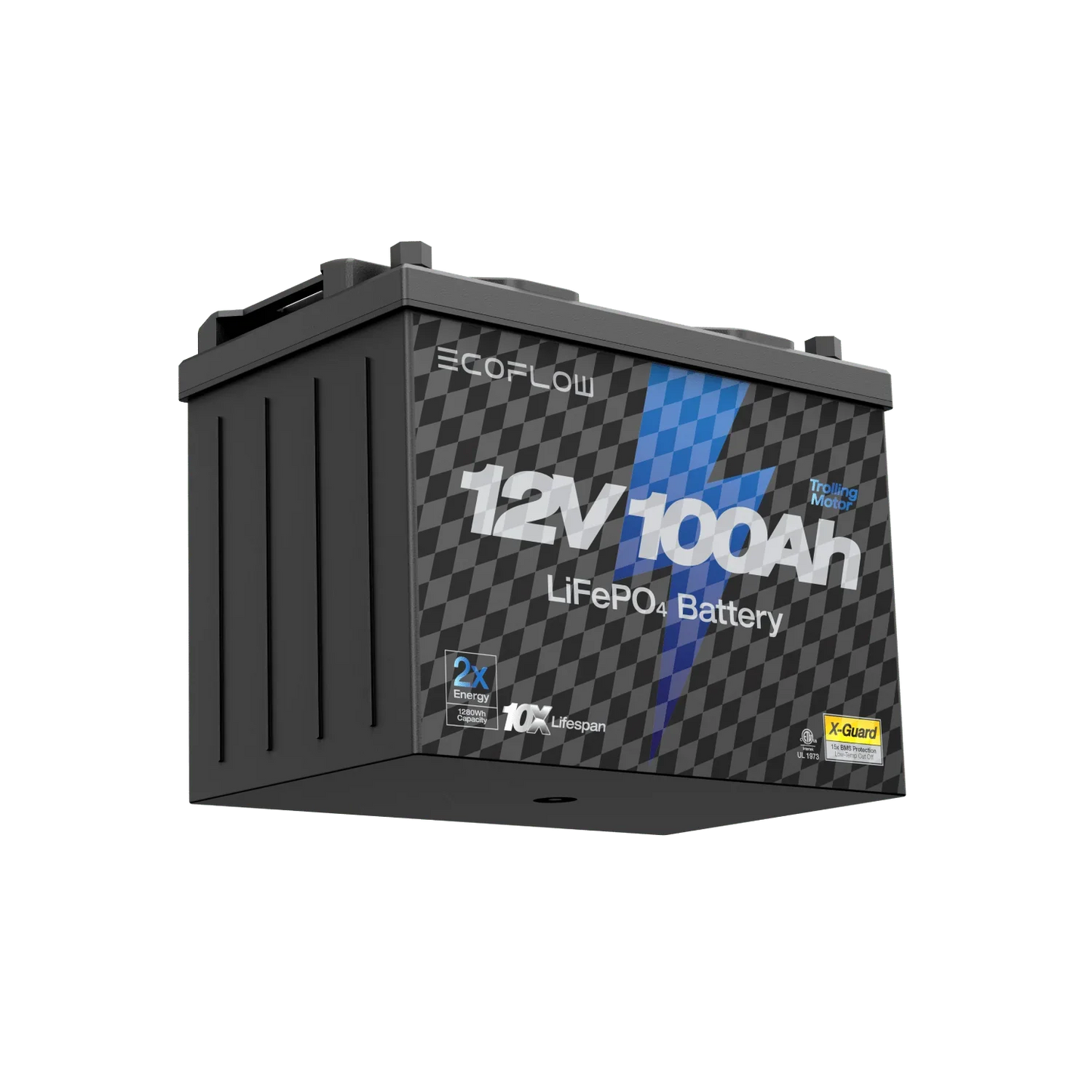

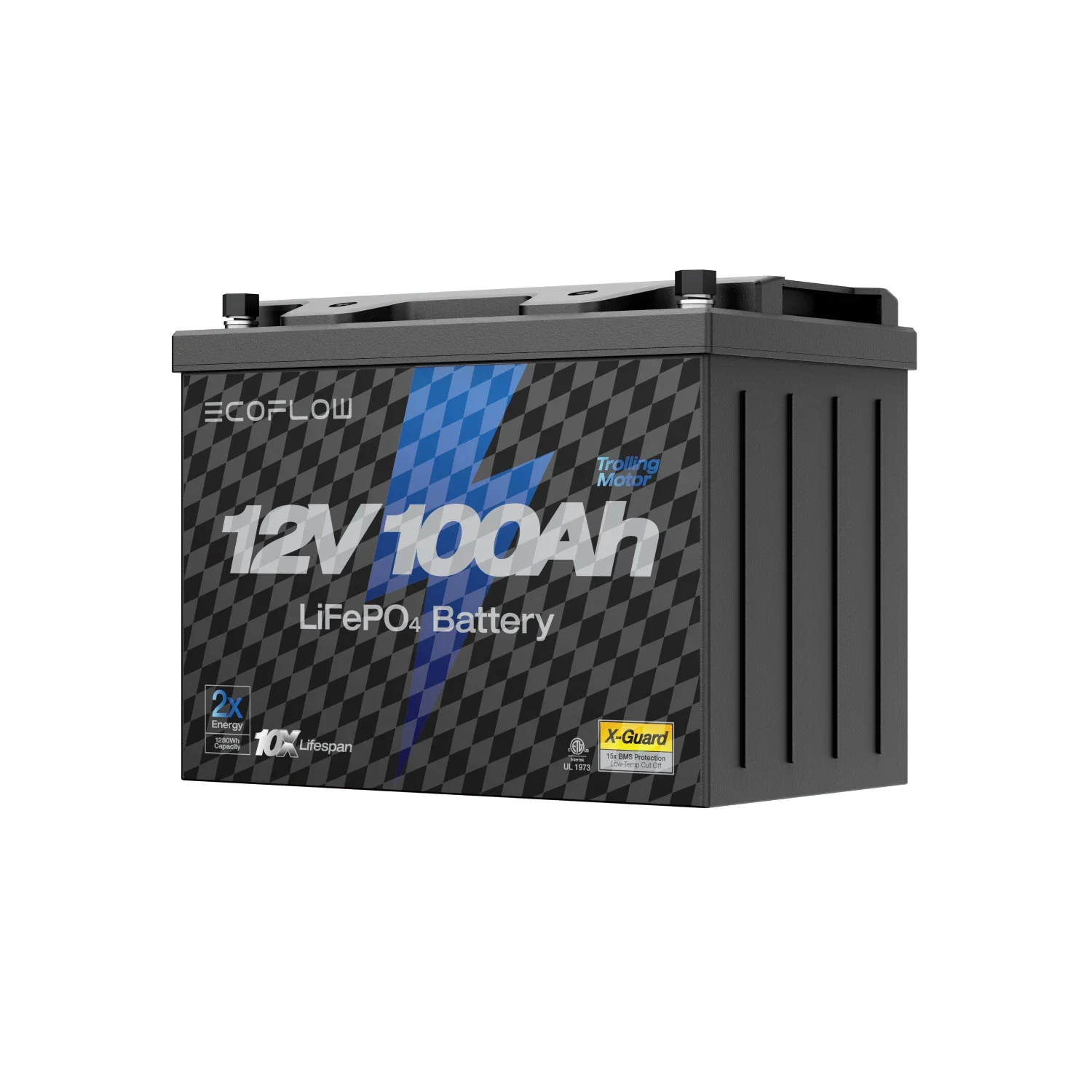

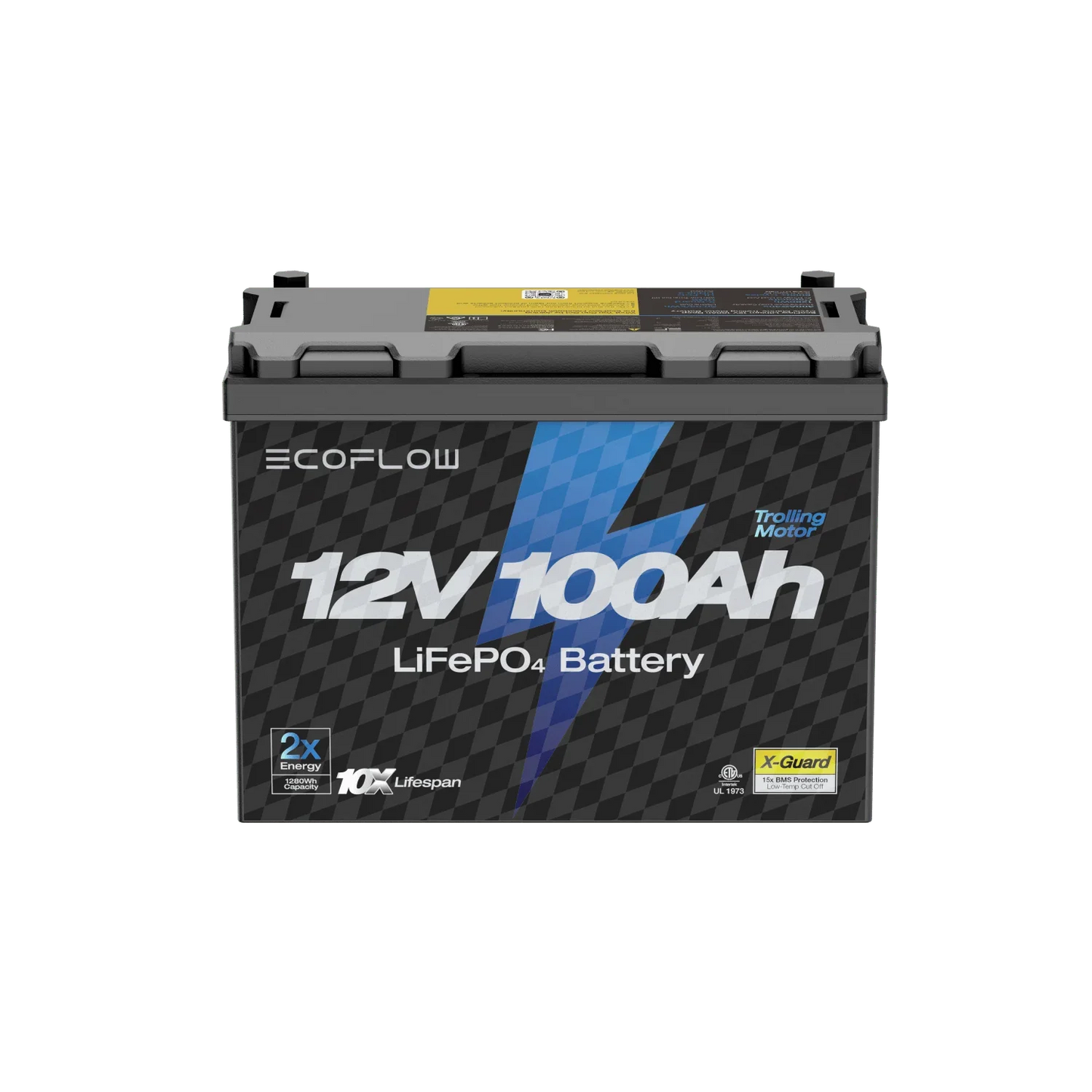

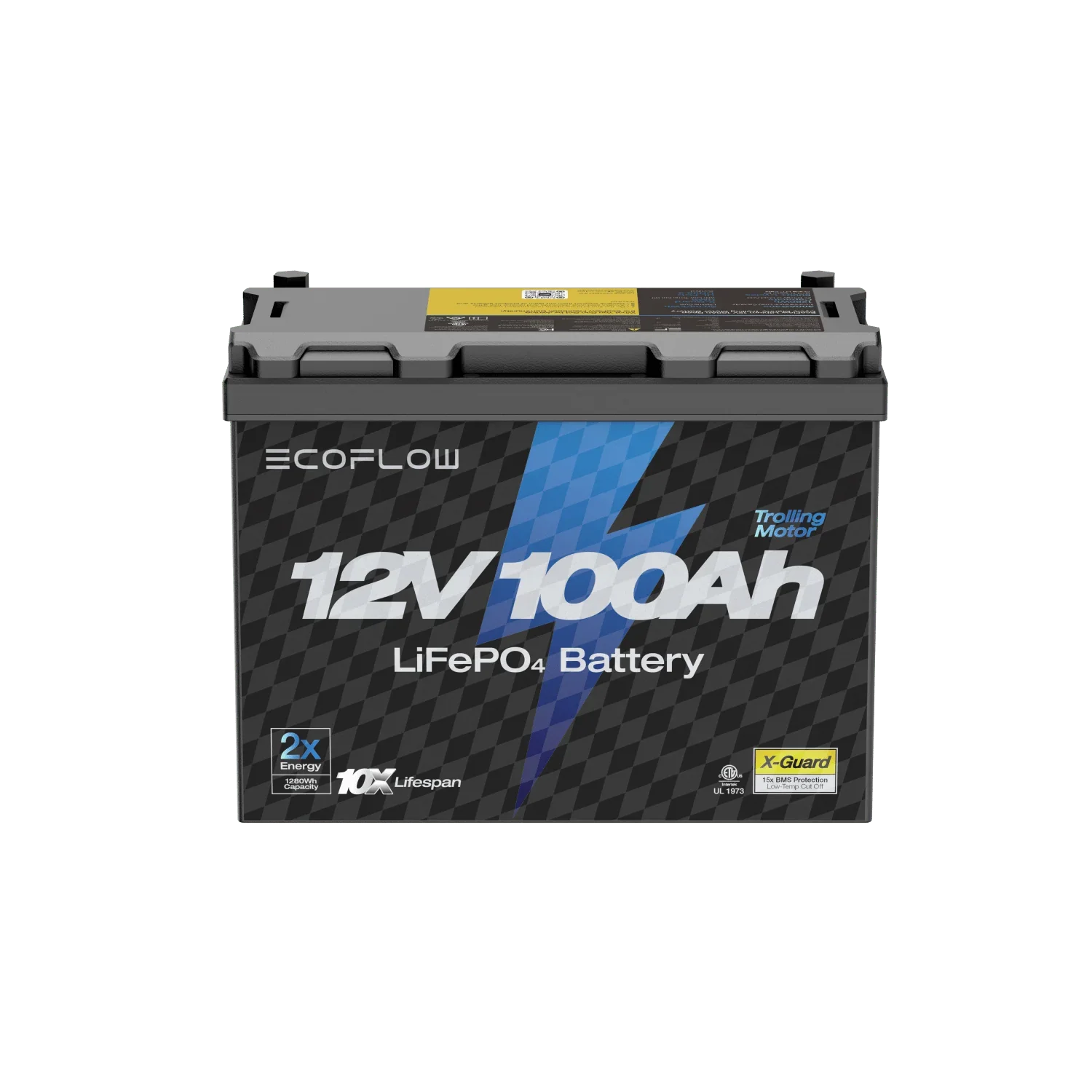

EcoFlow Lithium 12V 100Ah Deep Cycle Marine Trolling Motor Battery
EcoFlow Lithium 12V 100Ah Deep Cycle Marine Trolling Motor Battery
Couldn't load pickup availability
-
Craze Outdoors Advantage
- 5 - Star Google Reviews
- Free Shipping Over $75
- Same day shipping
- 30 Day Price Match
- Easy 30 Day Returns
The EcoFlow 12V 100Ah Deep Cycle Marine Trolling Motor Battery is a high-performance LiFePO₄ solution engineered specifically for 30–70 lb trolling motors, delivering the power, responsiveness, and longevity serious anglers demand. With 1280Wh of usable energy, 1280W continuous output, and an impressive 300A / 30-second instantaneous discharge rating, it delivers smoother acceleration, more precise speed control, and reliable performance in challenging water conditions.
Built with EV-grade LiFePO₄ cells, this battery provides 6000+ cycles at 80% depth of discharge—lasting up to 10× longer than lead-acid batteries while weighing 50% less. Its compact Group 27 form factor drops into most trolling motor battery trays without modification, making upgrades fast and straightforward.
The integrated X-Guard Smart BMS protects against over-voltage, over-temperature, low-temperature charging, short circuits, and overcurrent events—ensuring safe operation whether you're fishing in summer heat or cold spring mornings. With an IP65 waterproof and dustproof casing and UL5VA flame-retardant enclosure, it’s built for rugged marine environments including splashing, spray, and wet compartment installations.
Certified to UL 1973, IEC, FCC, UN38.3, and RoHS standards, and backed by a 5-year warranty, the EcoFlow 12V 100Ah Marine Trolling Battery is a premium upgrade for anglers who need dependable, long-lasting, high-output power on the water.
Features
Features

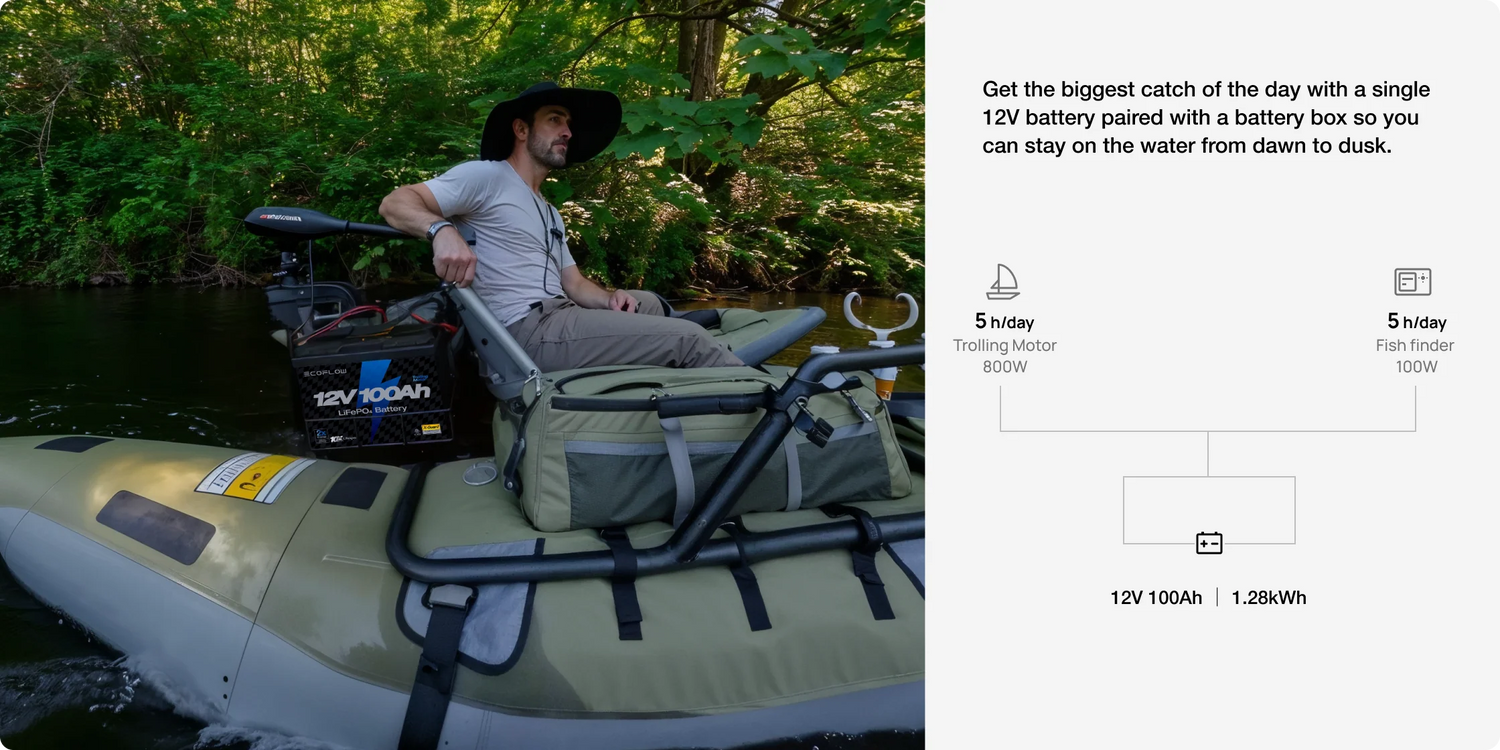

Designed for 30–70 lb trolling motors
1280Wh capacity with 1280W continuous power output
300A, 30-second instantaneous current for smoother throttle response
EV-grade LiFePO₄ cells with 6000+ cycles at 80% DOD
Lightweight design at only 26.7 lb
Group 27 form factor for easy drop-in replacement
50% lighter and 50% more usable power than lead-acid batteries
X-Guard BMS with low-temperature cut-off and full protection suite
IP65 waterproof and dustproof housing
UL5VA flame-retardant casing for enhanced safety
Certified to UL 1973, IEC, FCC, UN38.3, and RoHS standards
5-year warranty for long-term reliability

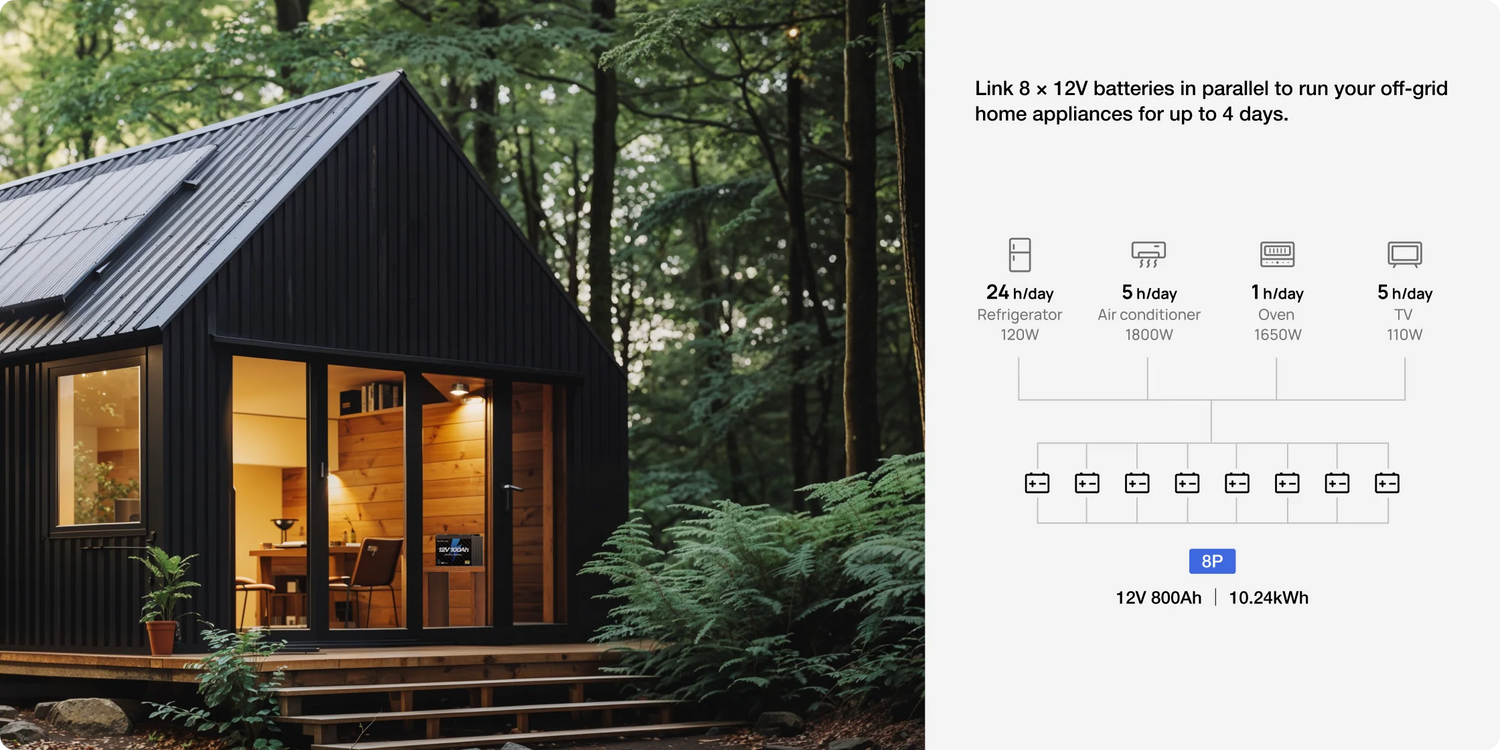

Expandable up to 4P4S or 2S8P configurations for higher voltage or capacity needs
Detailed Specifications
Detailed Specifications
General
- Cell Type: LiFePO₄
- Cycle Life: 6000 cycles at 80% DOD
- Nominal Voltage: 12.8 V
- Rated Capacity: 100 Ah
- Energy: 1280 Wh
- Protection Class: IP65
- Certifications: IEC62619, UL 1973, FCC, UN38.3, RoHS
- Warranty: 5 years
Electrical Specifications
- BMS: 100 A
- Max Continuous Output Power: 1280 W
- Max Continuous Charge Current: 100 A
- Max Continuous Discharge Current: 100 A
- Max Discharge Current (30 Seconds): 300 A
- Charge Method: CC/CV
- Charge Voltage: 14.4 V ± 0.2 V
- Recommended Charge Current: 50 A (0.5C)
Environmental
- Charge Operating Temperature: 0–55 °C (32–131 °F)
- Discharge Operating Temperature: -10–55 °C (14–131 °F)
- Storage Temperature: 0–45 °C (32–113 °F)
Expansion

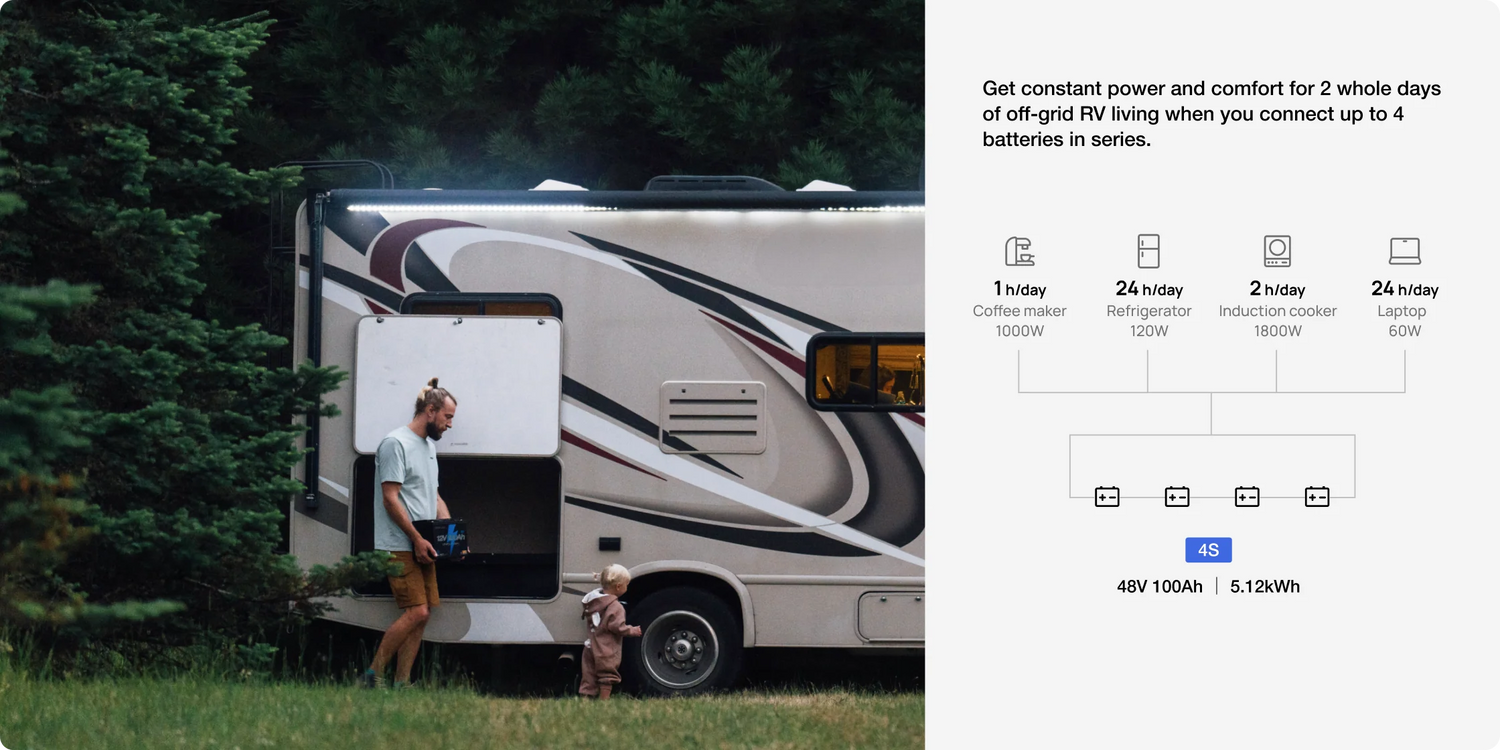

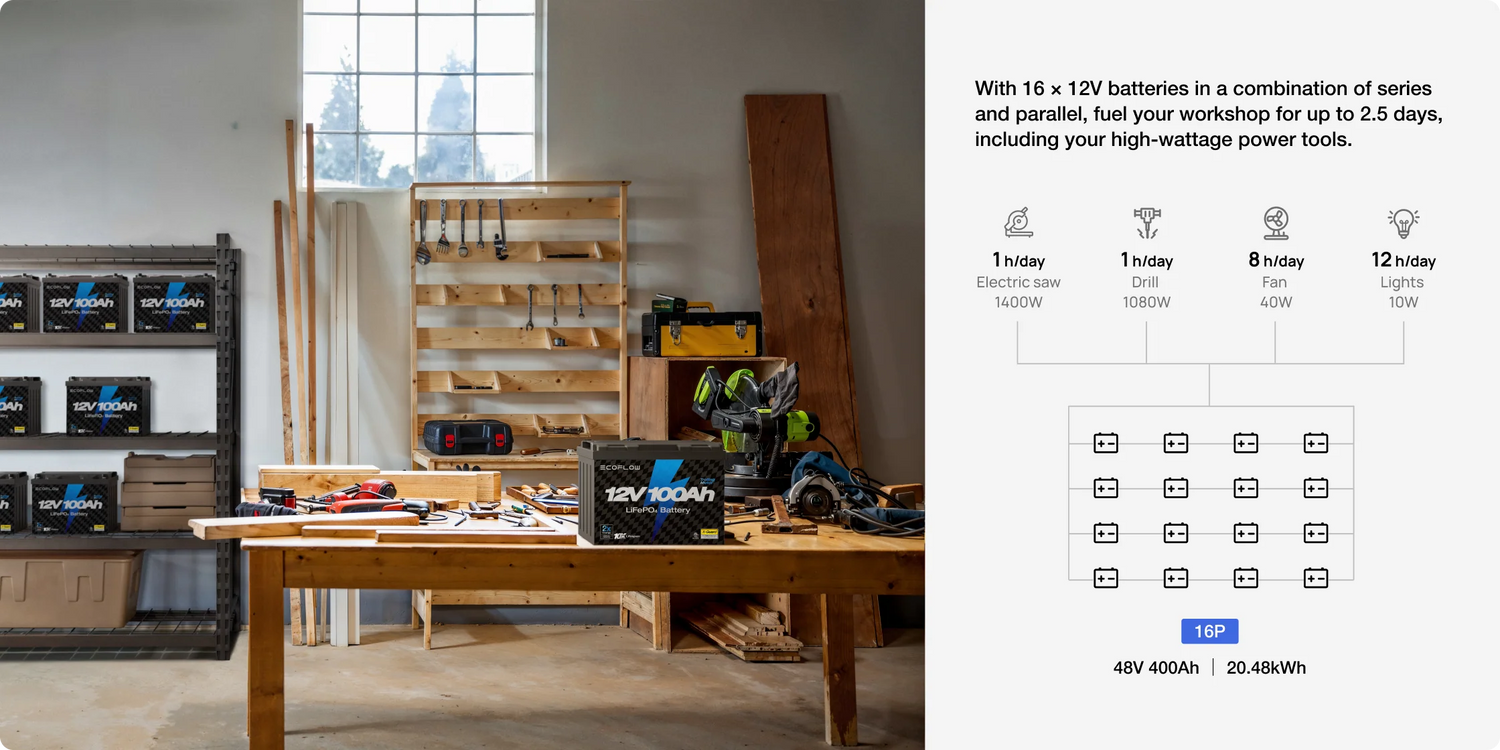

- Maximum Expansion (Parallel & Series): 4P4S or 2S8P configurations
Physical

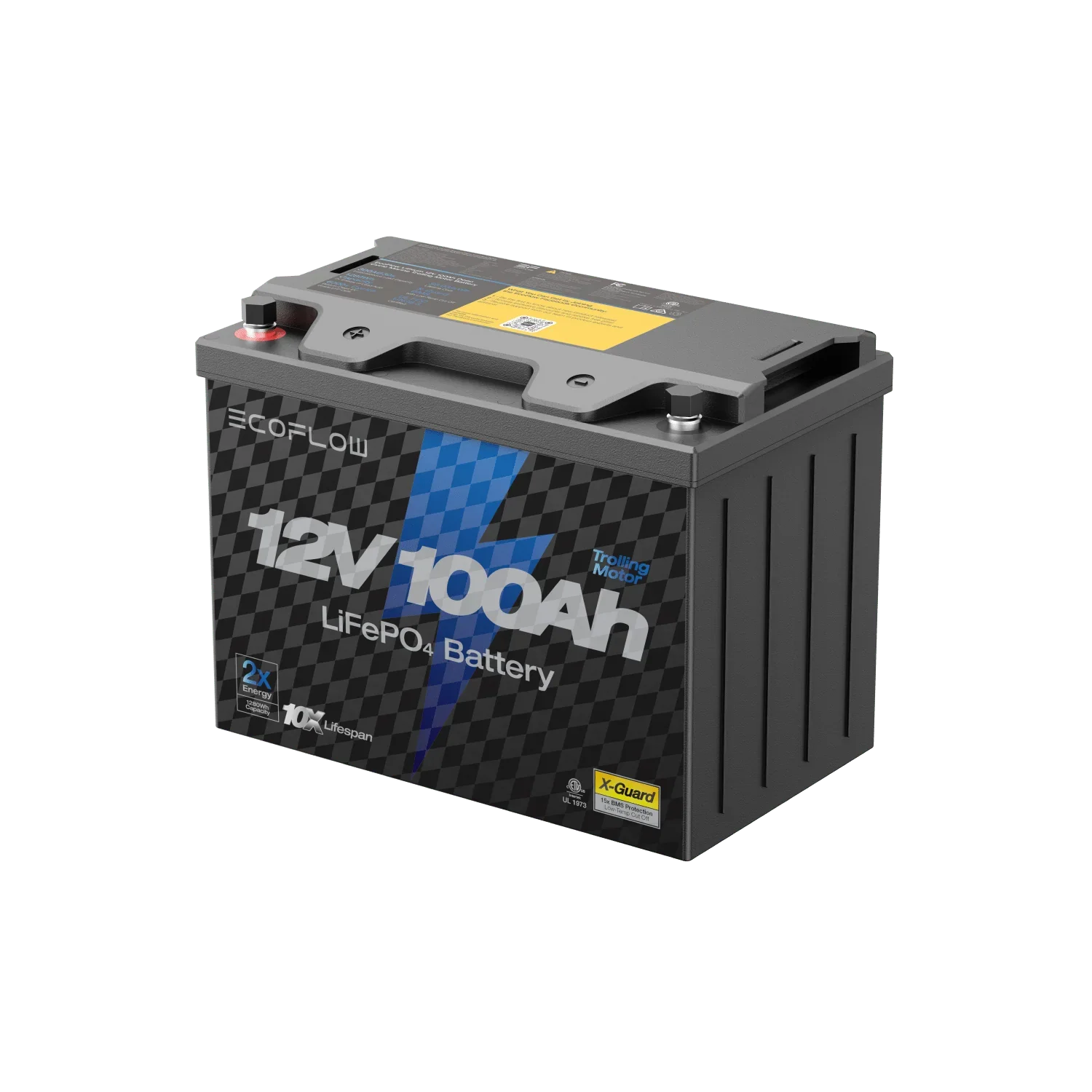

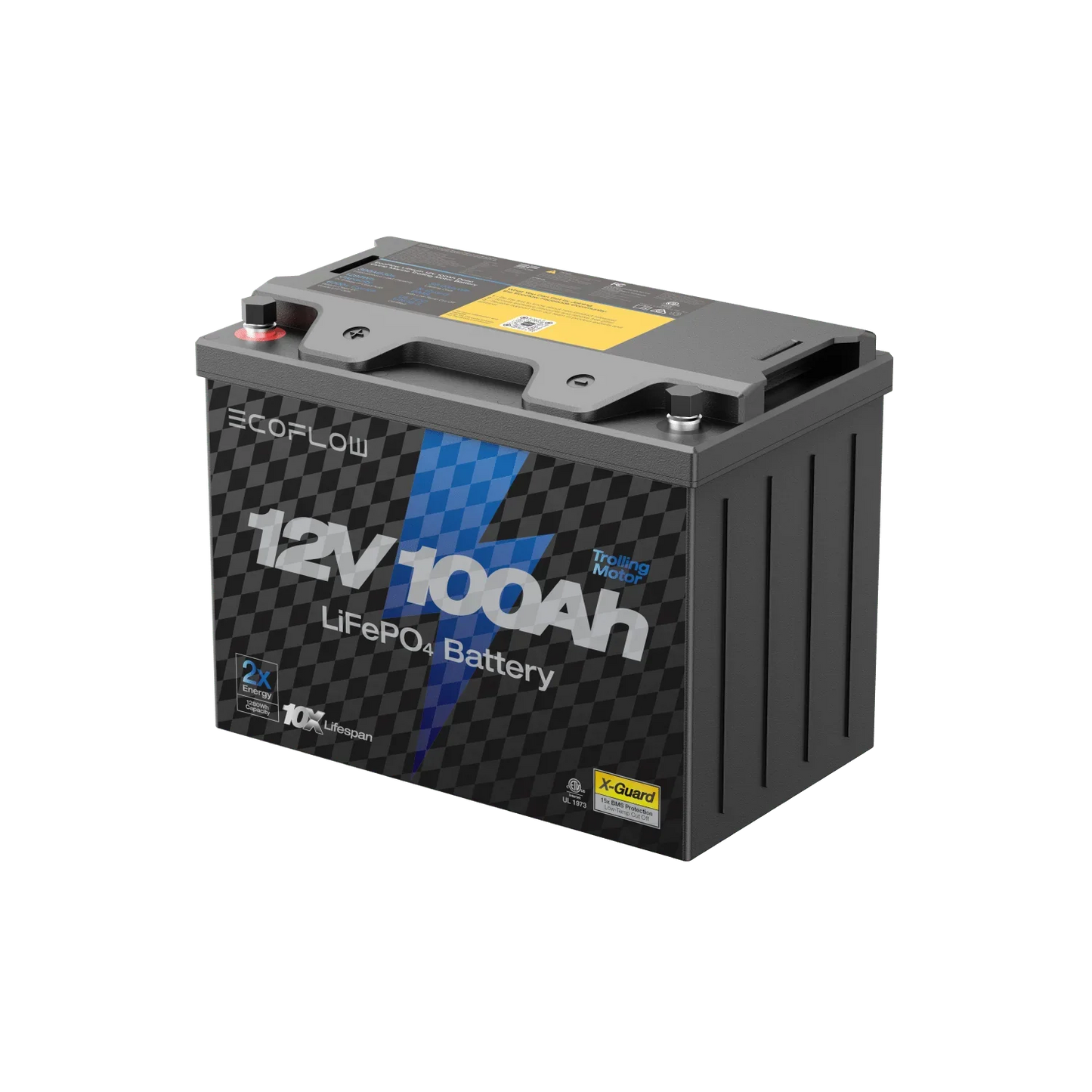

- Terminals: M8 bolts
- Weight: 12.1 kg (26.7 lb)
- Dimensions (L × W × H): 29.0 × 17.5 × 22.1 cm (11.4 × 6.9 × 8.7 in)
- Form Factor: Group 27 equivalent
What's Included
What's Included
1 x EcoFlow Lithium 12V 100Ah Deep Cycle Marine Trolling Motor Battery
Warranty
Warranty
5 Year Warranty
