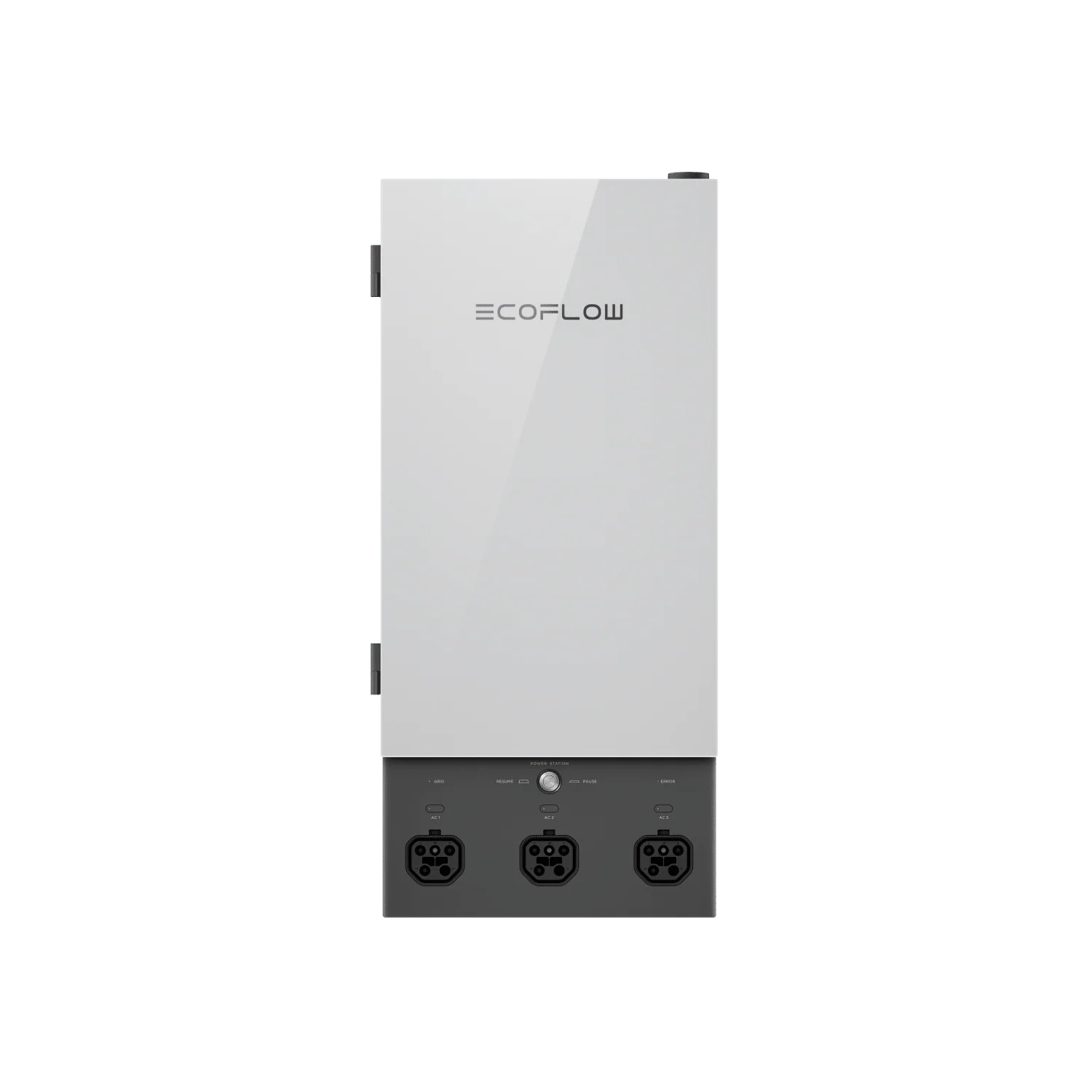

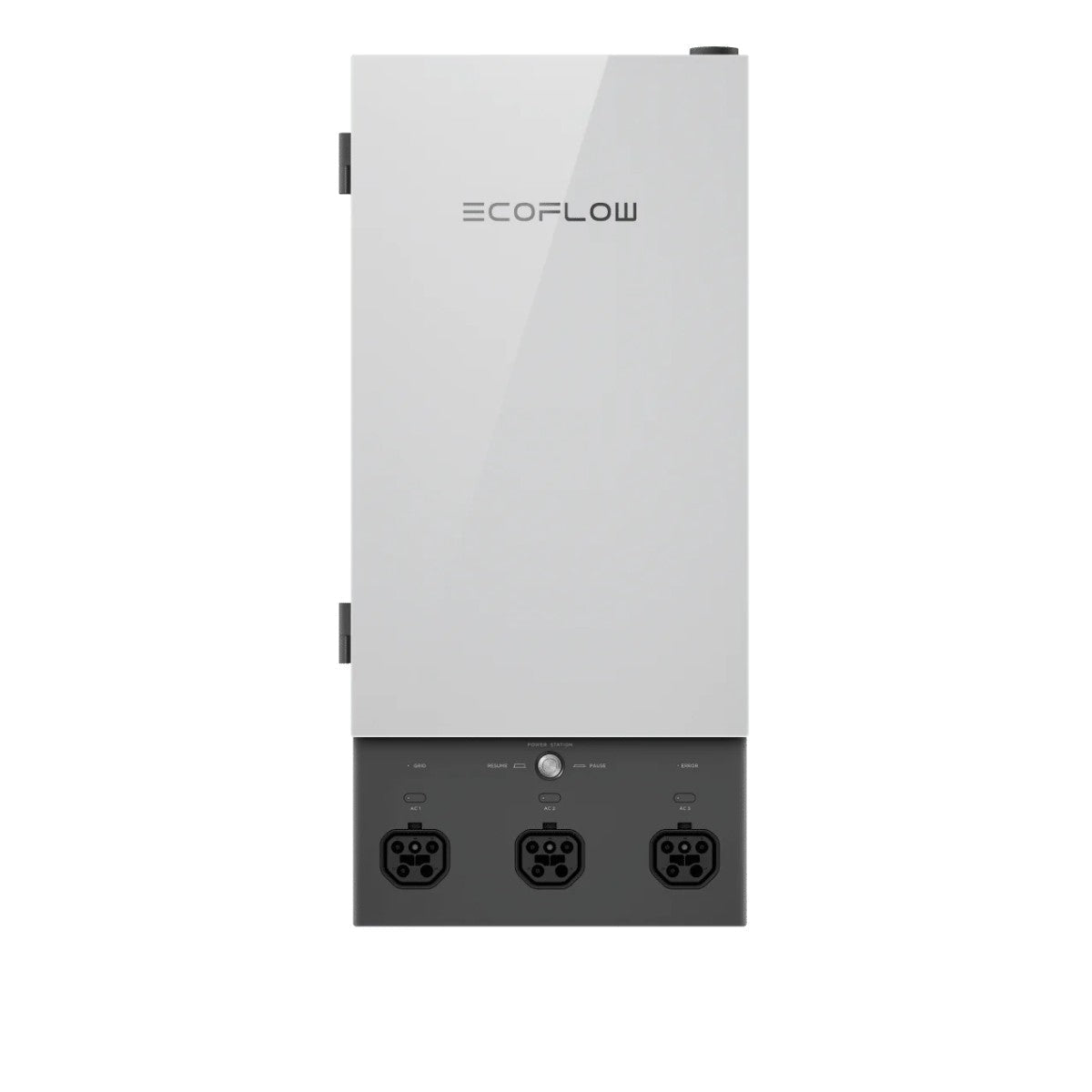

• EcoFlow Smart Home Panel 2 front view

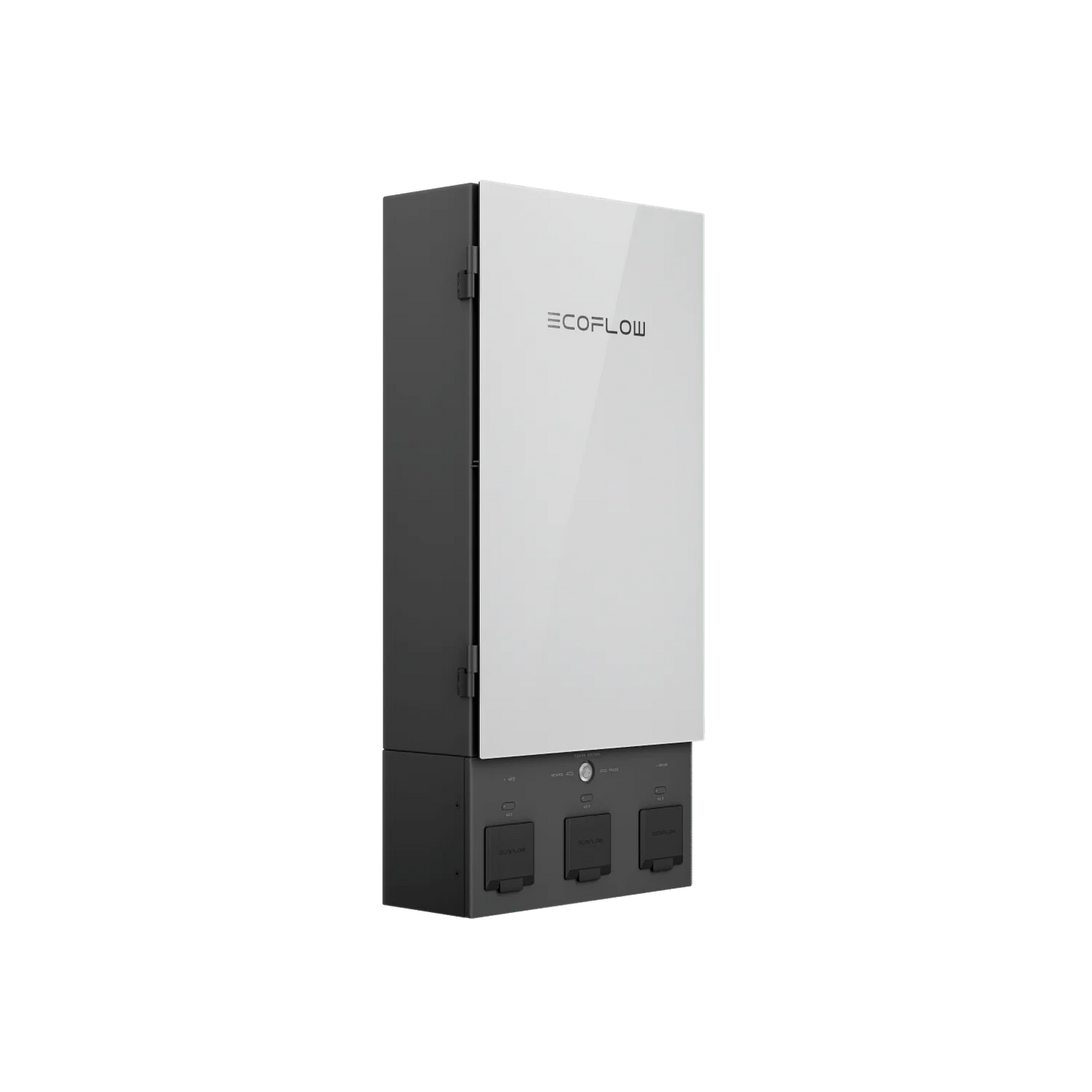

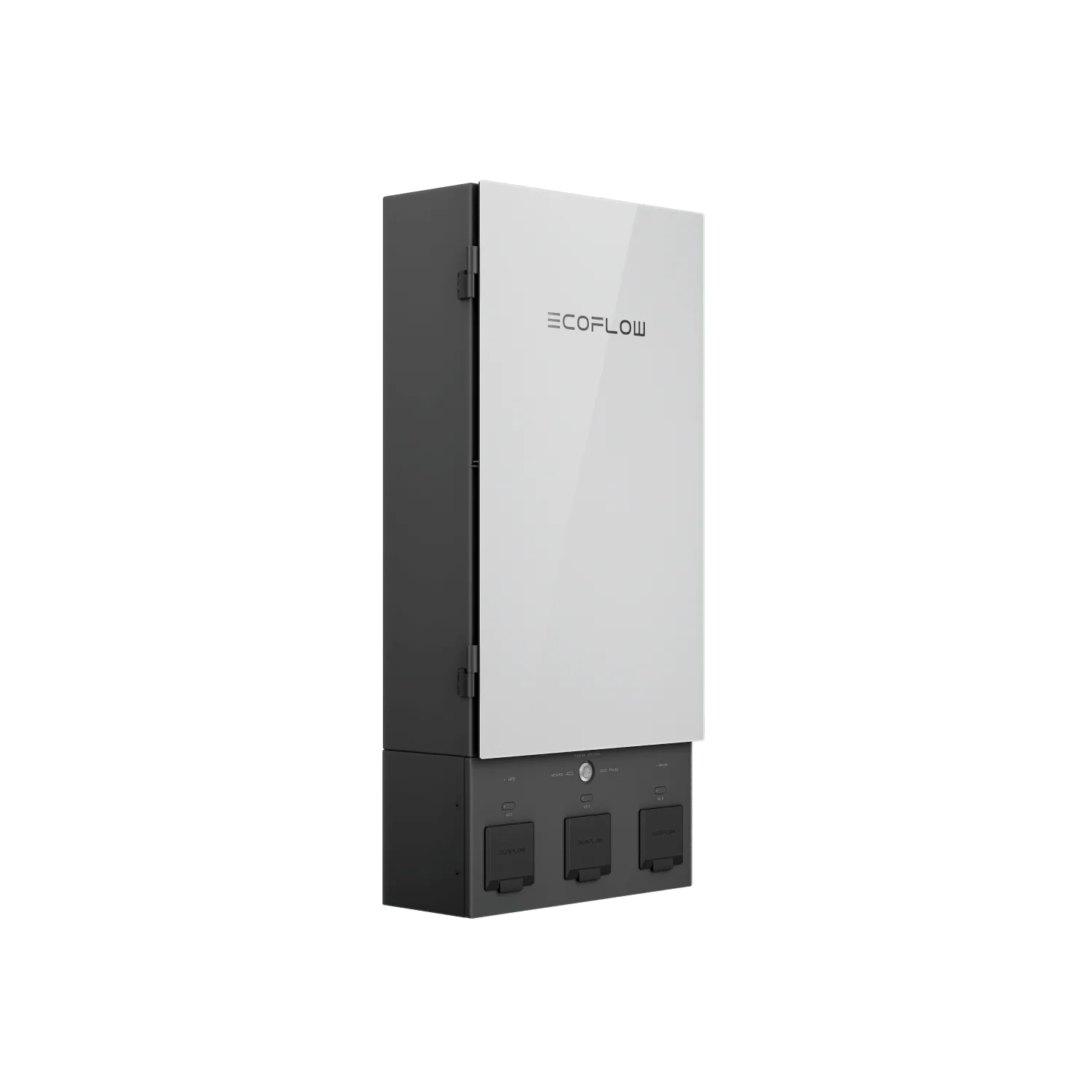

  • EcoFlow Smart Home Panel 2 front angled view

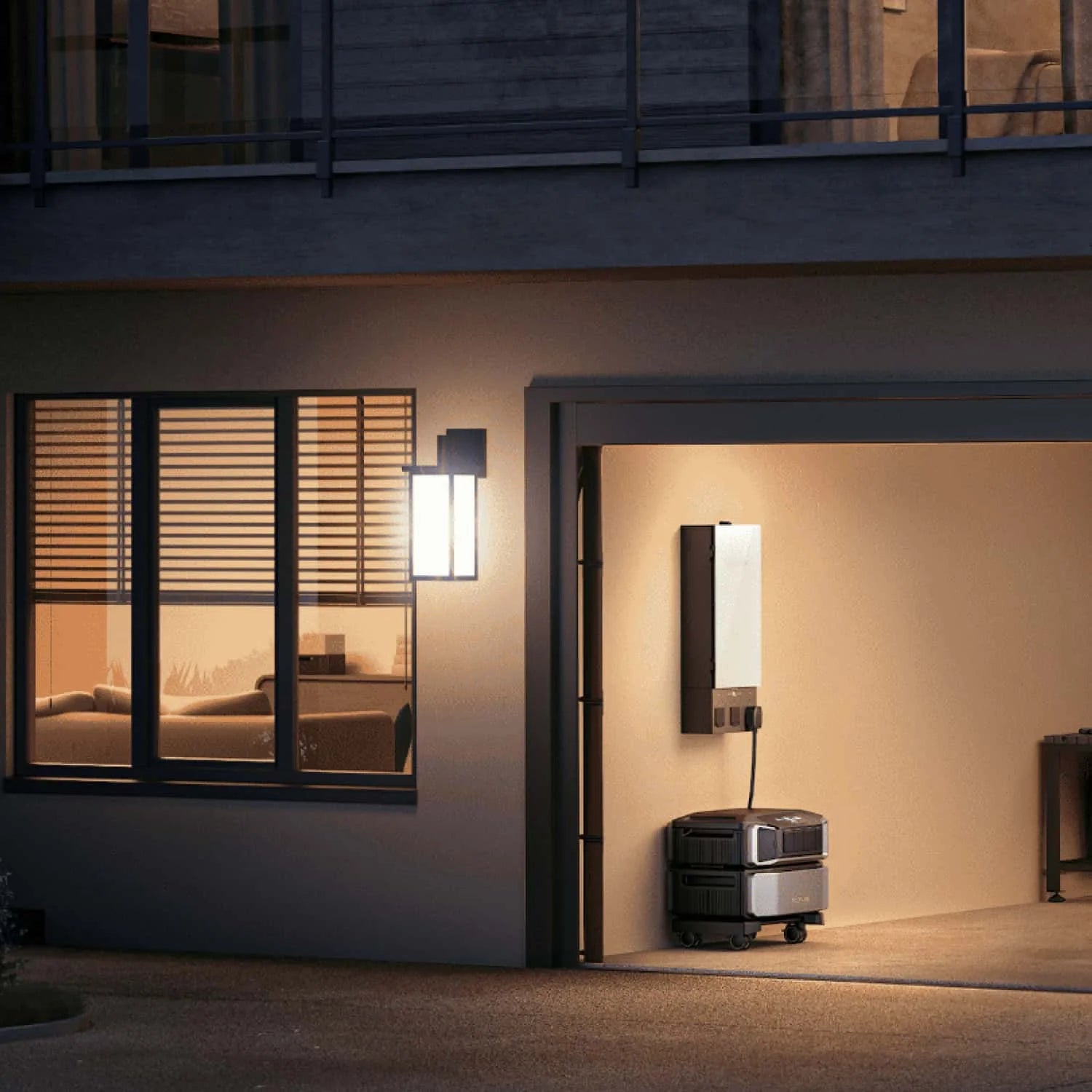

  • EcoFlow Smart Home Panel 2 lifestyle view installed in garage

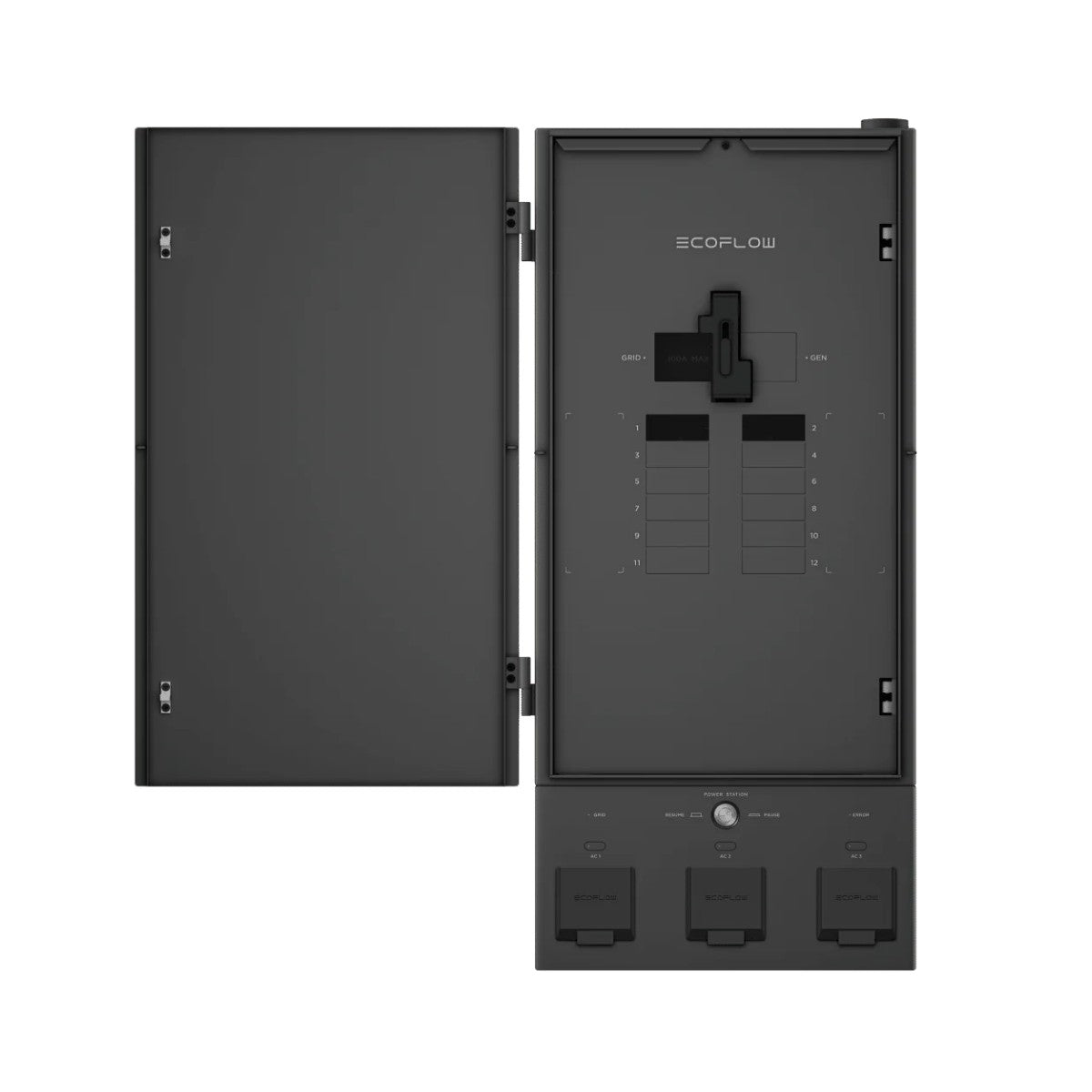

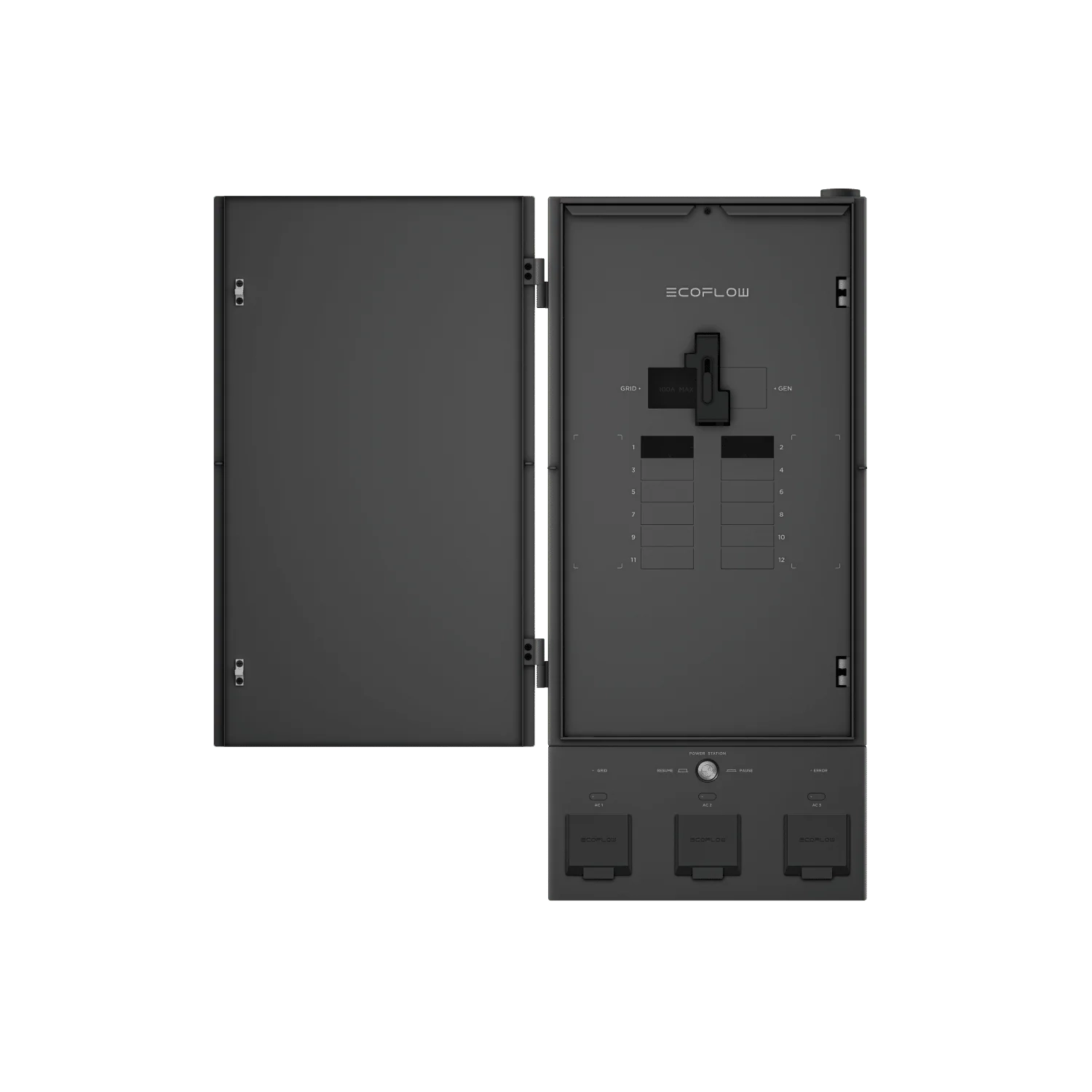

  • EcoFlow Smart Home Panel 2 open front interior view

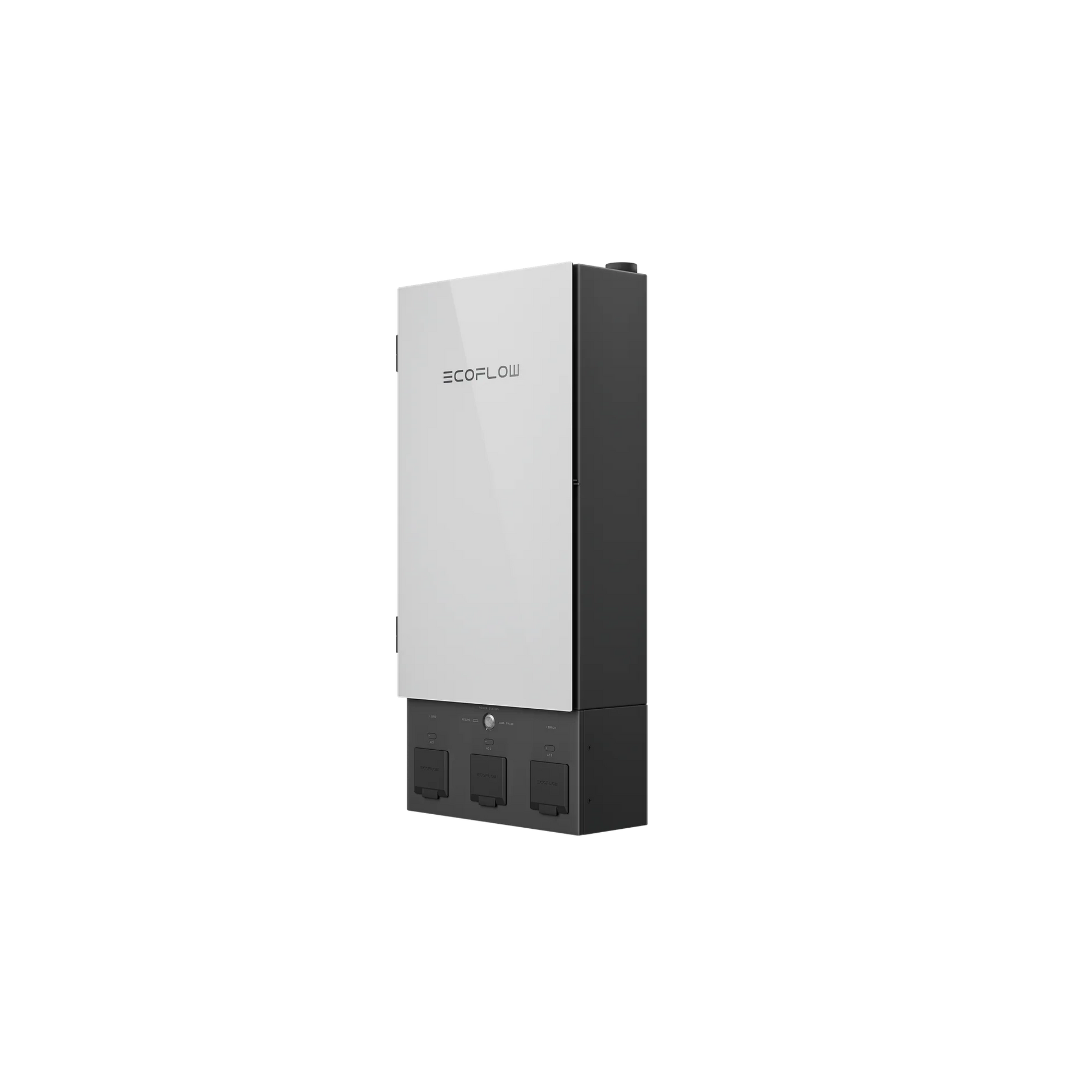

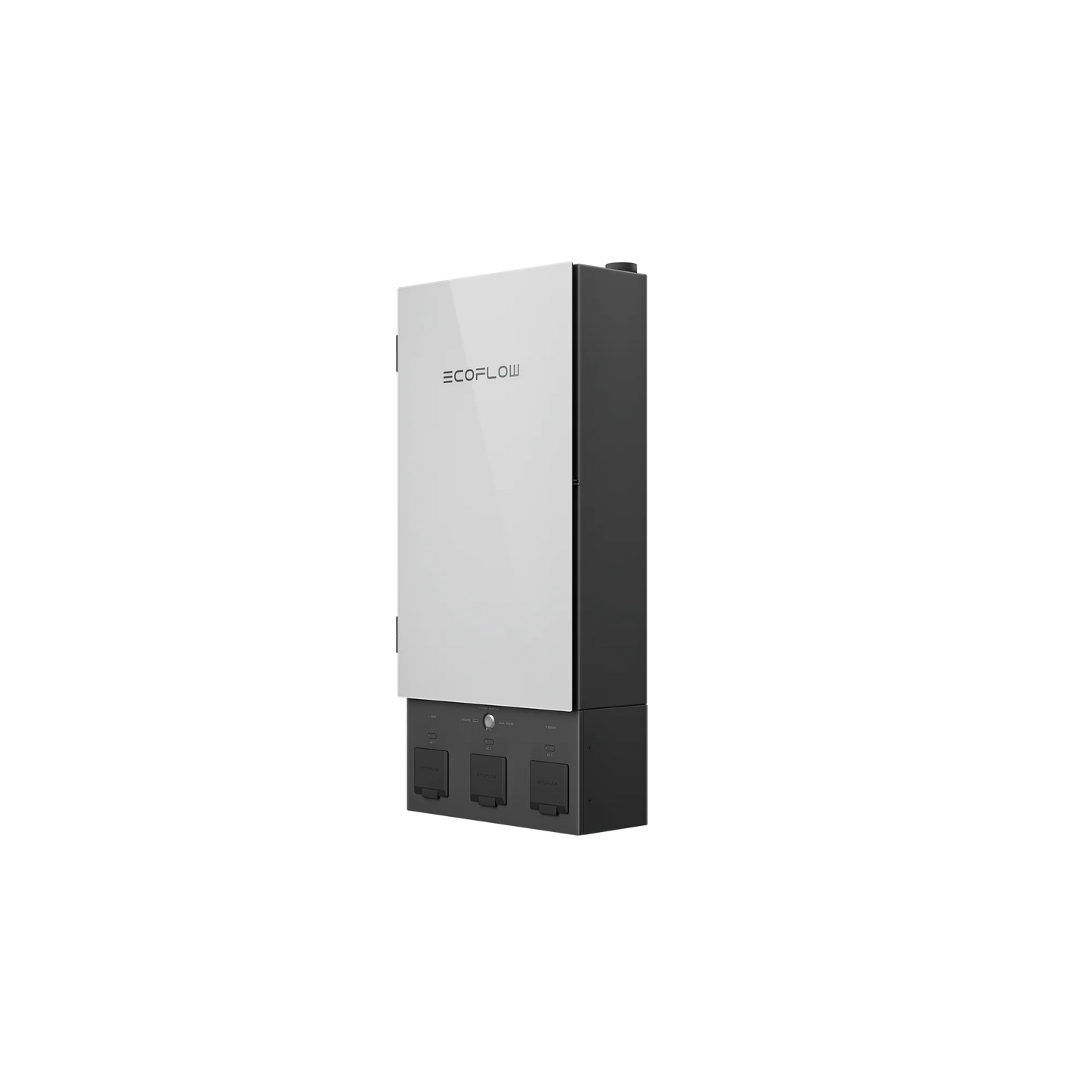

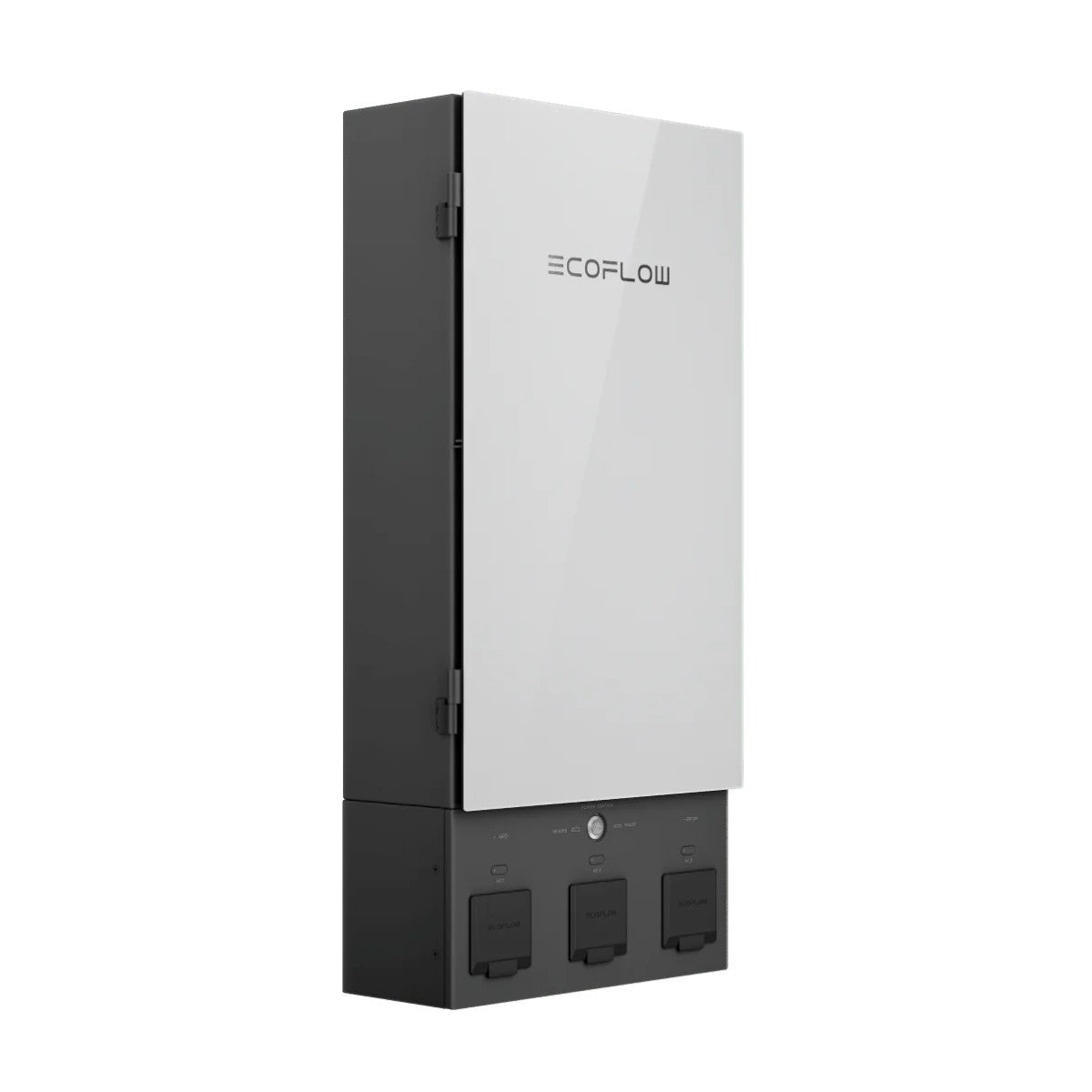

  • EcoFlow Smart Home Panel 2 side angle view
1 6

EcoFlow

EcoFlow Smart Home Panel 2

EcoFlow Smart Home Panel 2

$2,499.00 CAD
$2,699.00 CAD $2,499.00 CAD
Sale Sold out
Shipping calculated at checkout.

Earn $49.98 in Craze Outsider Rewards ?

The EcoFlow Smart Home Panel 2 is the central hub of EcoFlow’s next-generation home energy ecosystem—built for reliable whole-home backup, off-grid cabins, and hybrid solar + battery setups. This intelligent subpanel seamlessly connects your home circuits to EcoFlow’s DELTA Pro Ultra batteries and inverters, delivering ultra-fast <20 ms automatic switchover to keep your lights, appliances, and 120V/240V loads running without interruption during outages.

With support for up to 12 managed circuits, integrated generator input, and 240V compatibility for large home loads, the Smart Home Panel 2 brings true whole-home backup capability to both modern houses and remote off-grid properties. Whether you’re powering a full residence, a seasonal cabin, or a workshop beyond the reach of the grid, it ensures smooth, reliable, and safe power delivery.

Through the EcoFlow app, you can monitor real-time energy flow, prioritize essential circuits, schedule charging, and optimize off-grid or grid-tied operation. Its modular architecture, NEMA 3R rainproof enclosure, and 10-year warranty make it a long-term, durable foundation for any home energy system.


Features

Intelligent subpanel designed for EcoFlow home battery systems

Built for whole-home and off-grid backup with 120V/240V support

<20 ms automatic switchover to keep lights and appliances running during outages

Manages up to 12 home circuits with configurable priorities

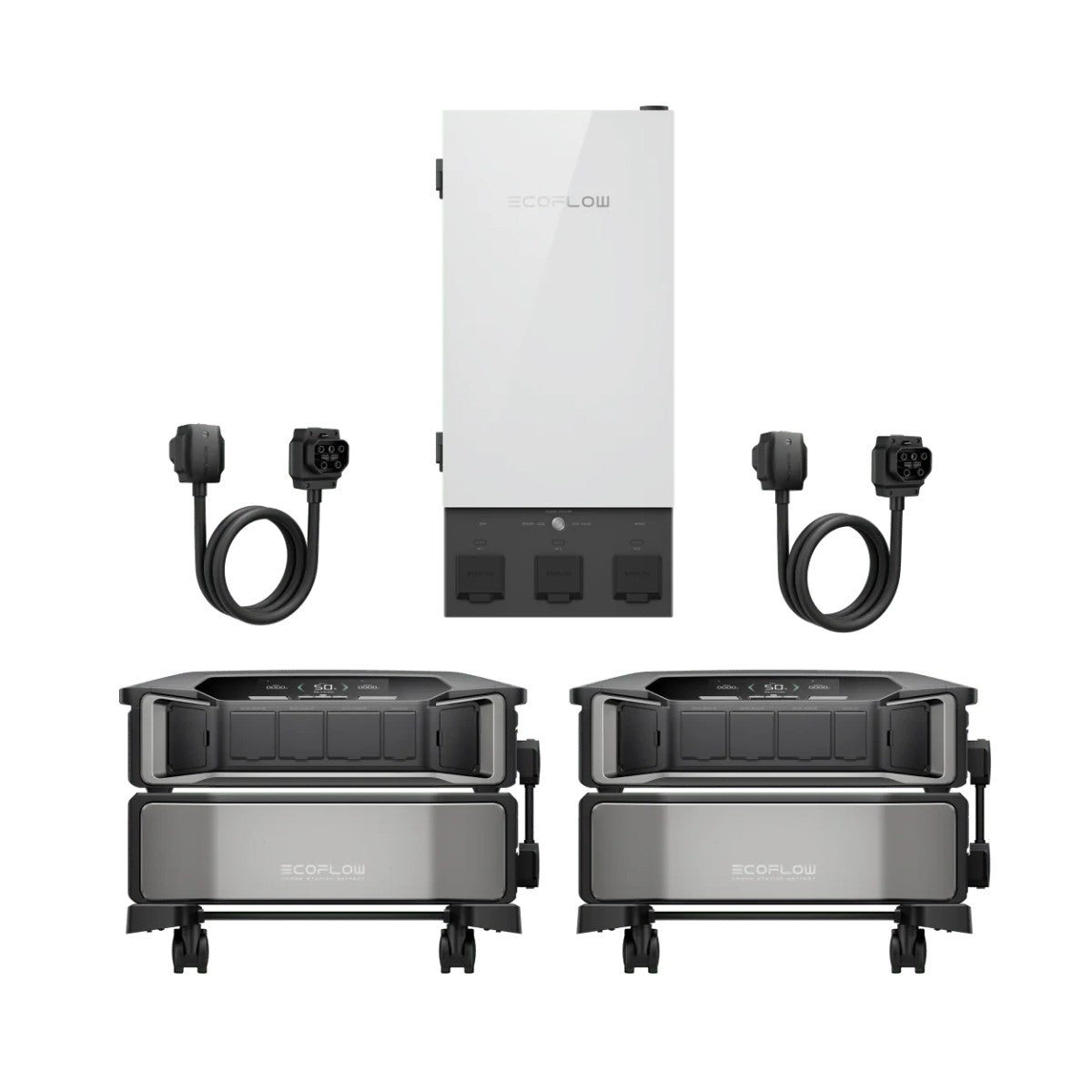

Integrates grid, EcoFlow DELTA Pro Ultra batteries, and gas generators into one system

Ideal for primary homes, off-grid cabins, workshops, and hybrid solar setups

EcoFlow app control for real-time monitoring, circuit control, and scheduling

Modular design with separate distribution panel and battery connection box

NEMA 3R rainproof distribution panel for indoor or covered outdoor installation

Long-term reliability with a 10-year warranty

Detailed Specifications

General
  • Product Type: Intelligent home backup subpanel
  • Number of Managed Circuits: 12
  • Control Method: EcoFlow App (remote monitoring and control)
  • Communication Methods: Wi-Fi, Bluetooth, Ethernet
  • Warranty: 10 years
Dimensions & Weight
  • Distribution Panel Dimensions (L × W × H): 63.0 × 37.8 × 17.0 cm (24.8 × 14.9 × 6.7 in)
  • Battery Connection Box Dimensions (L × W × H): 17.5 × 36.6 × 10.9 cm (6.9 × 14.4 × 4.3 in)
  • Combined Dimensions (L × W × H): 82.3 × 37.8 × 17.0 cm (32.4 × 14.9 × 6.7 in)
  • Distribution Panel Weight: 18.0 kg (39.7 lb)
  • Battery Connection Box Weight: 3.3 kg (7.2 lb)
  • Total System Weight: 24.0 kg (52.9 lb)
Output (To Home Circuits)
  • Output Voltage: 120 / 240 V
  • Output Frequency: 60 Hz
  • Circuit Breaker Current (per circuit): up to 60 A
  • Wire Diameter (circuits): 14–6 AWG
  • Output Wiring Method: L1 / L2 / N / PE
Grid Access Input
  • Input Voltage: 120 / 240 V
  • Input Frequency: 60 Hz
  • Maximum Input Current: 100 A
  • Circuit Breaker Current: max 100 A
  • Wire Diameter: 4 AWG
Generator Access Input
  • Input Voltage: 120 / 240 V
  • Input Frequency: 60 Hz
  • Maximum Gas Generator Input Power: 12 kW
  • Circuit Breaker Current: max 50 A
  • Wire Diameter: 1 AWG
Home Backup (Battery) Access Input
  • Input Voltage: 120 / 240 V
  • Input Frequency: 60 Hz
  • Maximum Input Current (per battery/inverter): 30 A
  • Maximum Input Power (per battery/inverter): 7200 W
Environmental
  • Operating Temperature: -30 to 49 °C (-22 to 120 °F)
  • Storage Temperature: -40 to 70 °C (-40 to 158 °F)
  • Maximum Operating Altitude: 2000 m (6561.6 ft)
  • Relative Humidity: up to 100%
  • Protection Level (Distribution Panel): NEMA Type 3R (rainproof)
  • Protection Level (Battery Connection Box): NEMA Type 1

What's Included

1 x EcoFlow Smart Home Panel 2
1 x EcoFlow Power Input/Output Cable
1 x Installation Guide
1 x Marking-off Template
1 x Warranty Card

Warranty

10 Year Warranty
