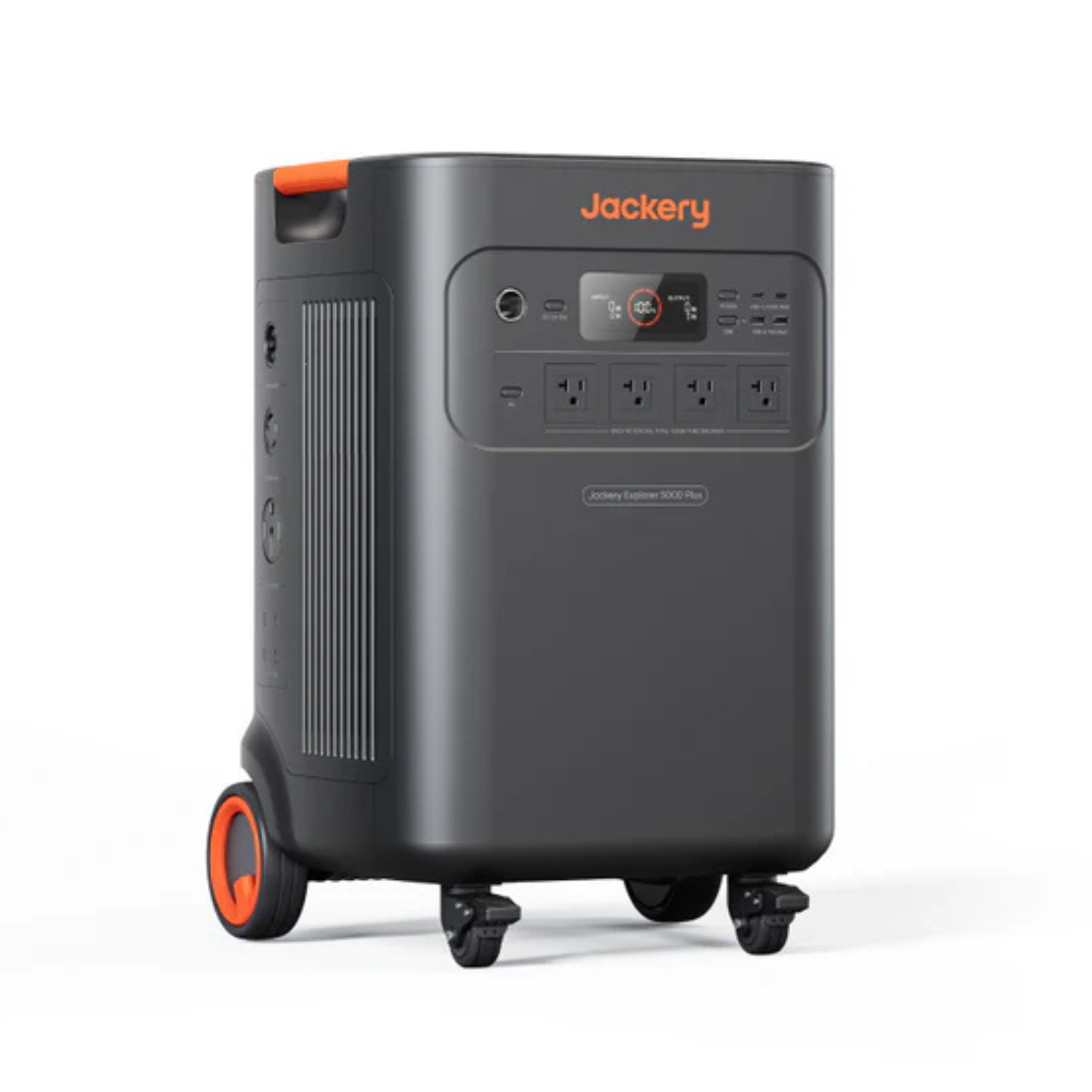

Jackery Explorer 5000 Plus Portable Power Station

Jackery Explorer 5000 Plus Portable Power Station

$4,299.00 CAD
$4,999.00 CAD $4,299.00 CAD
Sale Sold out
Shipping calculated at checkout.

Earn $85.98 in Craze Outsider Rewards ?

Pre-Order Your Jackery 5000 Plus.
Limited Quantities Available.
Pre-orders expect to ship mid-December

Highlights

  • 5-10kWh Capacity & 7.2-14.4kW Output for reliable home backup power lasting up to 2 weeks.
  • 120V/240V dual voltage enhances compatibility, supporting more loads like dryers, water pumps, ovens, ACs, EVs, RVs, etc.
  • Fully charges in 1.7 hours, compatible with AC, high-voltage PV (4000W), low-voltage PV (1200W), and more.
  • UPS 0 ms switchover for uninterrupted power to essential devices.

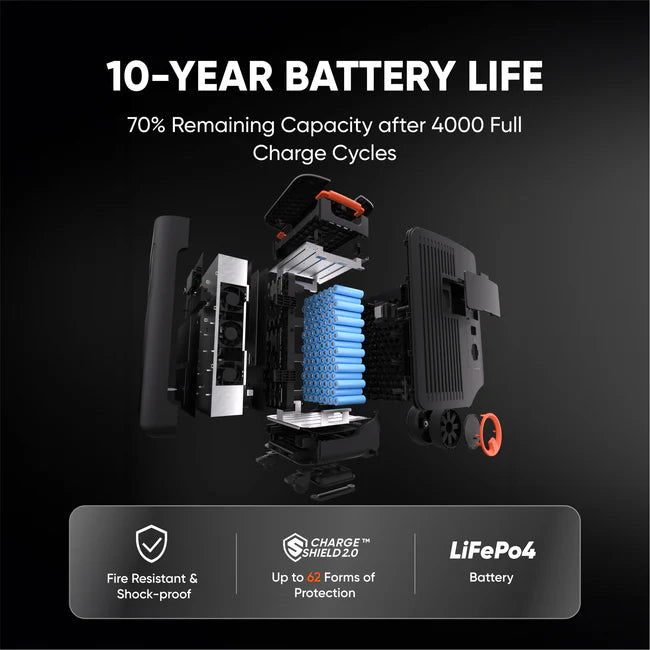

  • Next-gen LiFePO4 battery lasts over 10 years, including a 5-year warranty + 2 optional years.
  • ChargeShield 2.0 for advanced protection and efficient charging.

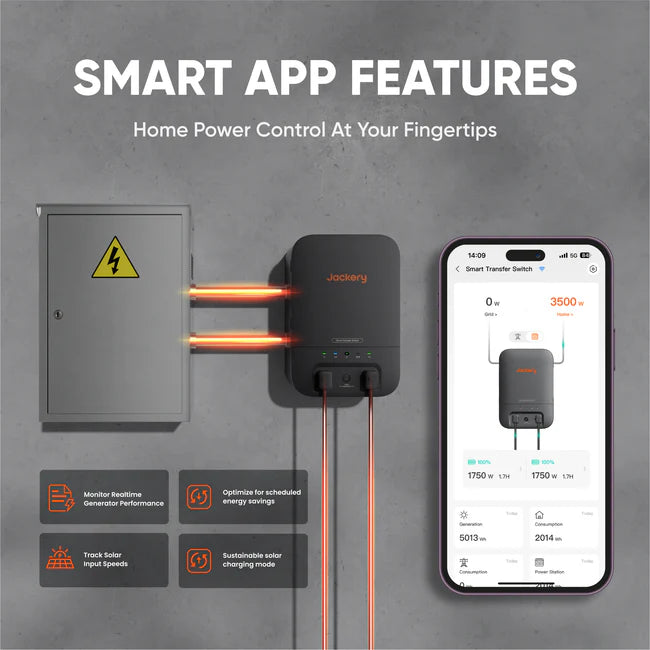

  • Smart App Control: Remotely monitor and manage power usage, with scheduled charge/discharge settings for efficiency.
  • Compact & Quiet Design: Features optimized CTB structure, equipped with wheels and a pull handle, maintaining a low noise level of just 30 dB.

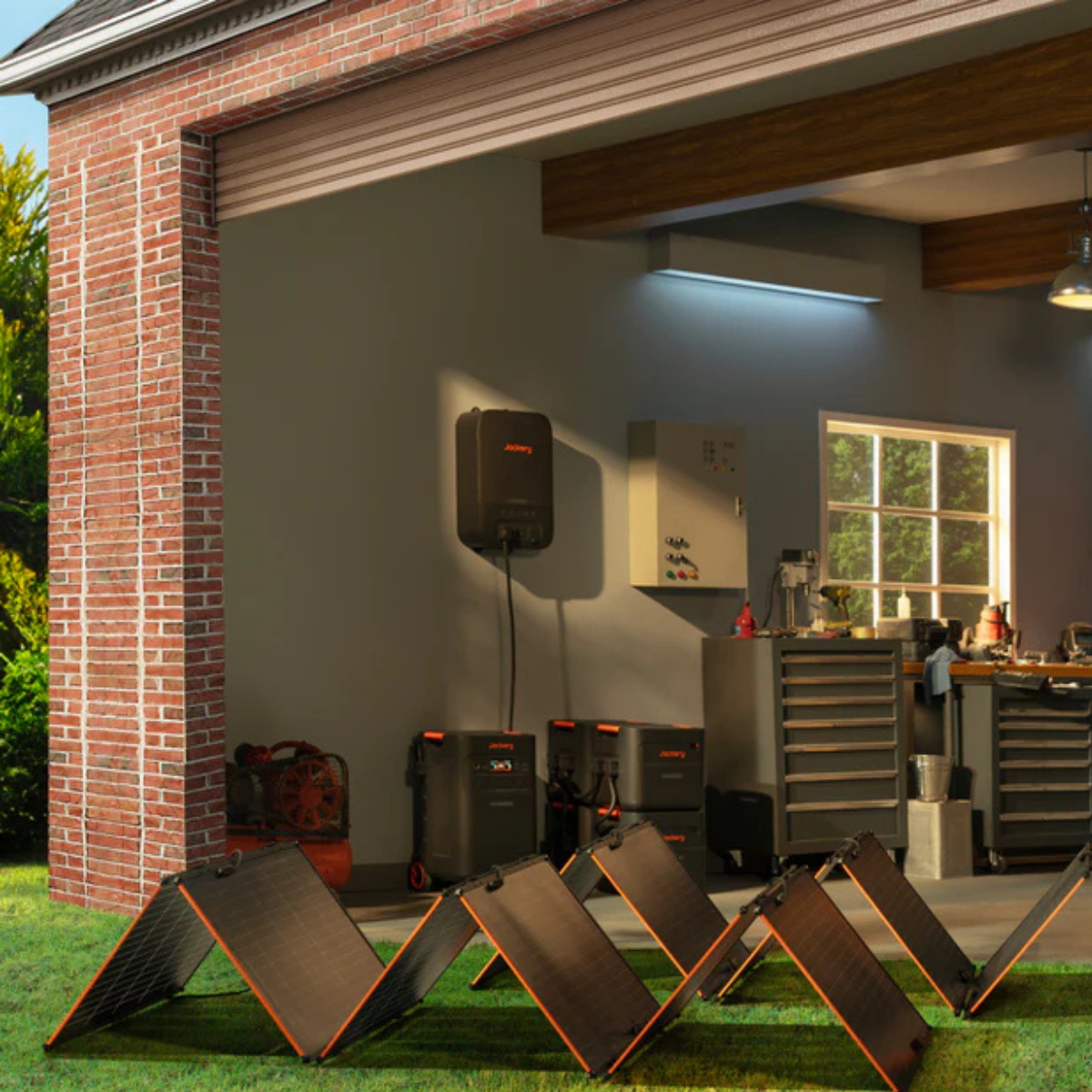

  • Solar Integration: Connects with Jackery 500X solar panels, 25% higher efficiency.

Specifications

Battery:

Capacity: 45Ah/112V DC (5040Wh)
Cell Chemistry: LiFePO4
Cycle life: 4000 cycles to 70%+ capacity

Ports
AC Output: (NEMA L14-30R/14-50) 120V/240V~60Hz, 30A, 7200W Max
AC Total Output: 7200W Max, 14400W Surge
AC Output(x4): 120V, 20A, 2400W
USB-A Output(x2): 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A
USB-C Output(x2): 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A
Cigarette Lighter Port: 12V⎓10A
AC Expansion Port (Output)(x1): 240V~60Hz, 30A, 7200W
DC Expansion Port (Output)(x1): 80.5V-126V⎓41A Max
Charge mode AC input: 120V~60Hz, 15A Max
Bypass mode AC input/output: 120V, 12A Max 240V, 16.7A Max
AC Expansion Port (Input)(x1): 240V~60Hz, 16.7A Max
DC Expansion Port (Input)(x1): 80.5V-126V⎓98A Max

High-PV: 135V-450V⎓15A Max
Low-PV: 2 x DC 8mm Ports; 16V-60V⎓10.5A Max, Double to 21A/1200W Max 11V-16V(Working Voltage)⎓8A Max, Double to 8A Max

Dimensions
Weight: About 134.5 lbs (61 kg)
Height: 16.5in (41.8cm)
Width: 15.5in (39.5cm)
Length: 25 in (63.5 cm)

Charge Temperature: 0°C~45°C (32°F~113°F)
Discharge Temperature: -15°C~45°C (5°F~113°F)

UPS: Backup UPS: ＜20ms, Onine UPS: 0ms
Inverter Topology: Non-isolated
Power Factor: ≥0.98
Entire Unit: Type 1

Jackery Smart Transfer Switch
AC Voltage (Nominal): 120V/240V~ 60Hz
Feed-In Type: Split Phase
Maximum Input Current: 100A Grid / 60A Power Station
Maximum Output Current: 60A Home Load / 33.4A

Power Station
Maximum Input Short-Circuit Current: 10KA
Overvoltage Category: IV
UPS: ≤20ms

Enclosure Type (Distribution Panel): NEMA Type 1
Number of Load Branches: 12
Main Circuit: 2 AWG
Branch Circuit: 14 AWG 12 AWG 10 AWG

Communication: Wi-Fi and Bluetooth

Operating Temperature: -4°F~113°F (-20°C~45°C)

Dimensions:
22 x 14.7 x 7.87 in (56 x 37.4 x 20 cm)
Weight: About 25.57 lbs (11.6 kg)

Warranty

Warranty Extension: 3-year warranty + free 2-year automatic extended warranty through Craze Outdoors.

View full details

Jackery 5000 Plus Overview

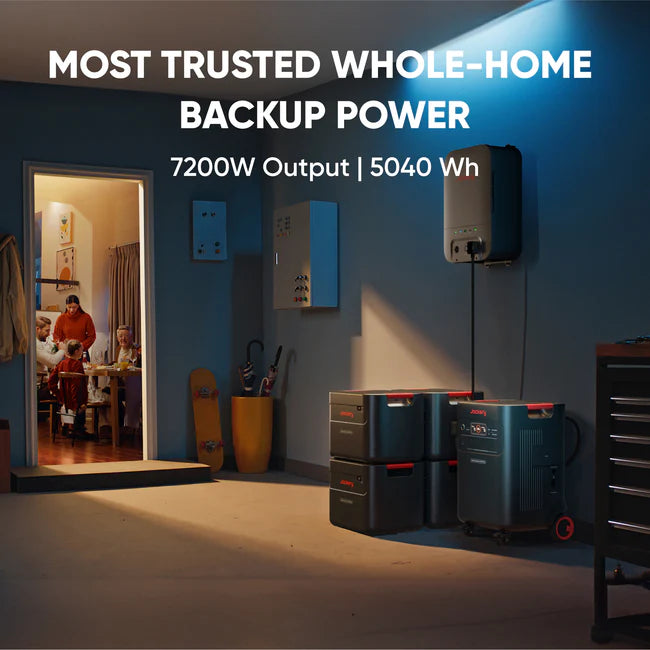

Jackery Explorer 5000 Plus offers powerful, eco-friendly home backup with 5-60kWh capacity and dual voltage output (120V/240V). It supports various appliances during outages with 12 output ports, 7.2-14.4kW power, and a 0ms UPS switch for seamless operation of essential devices like fridges, computers, home servers, routers, and ventilators. Smart app control and multiple charging options add convenience, while its zero-emission design ensures safe indoor use.

Jackery 5000 Plus Features

Uses

1 3
1 3

4 Ways to Charge

  • AC Charging: 1800w - 3.5 hrs

  • ColumnCharging via Smart Transfer Switch: 4000W - 1.7 hours

  • High-voltage PV charging: 4000W - 1.7 hours

  • Hybrid Charging (AC, Solar Panels, and Smart Transfer Switch): 4000W - 1.7 hours

Product Comparison

What's Included

Jackery 5000 Plus with Smart Switch

  1. Jackery Explorer 5000 Plus *1
  2. Jackery Explorer 5000 Plus *1
  3. MC4 Wrench*1
  4. Jackery Smart Transfer Switch*1
  5. Jackery Smart Transfer Switch*1
  6. Wall Bracket*2
  7. M4 Phillips Flat Head Screw*4

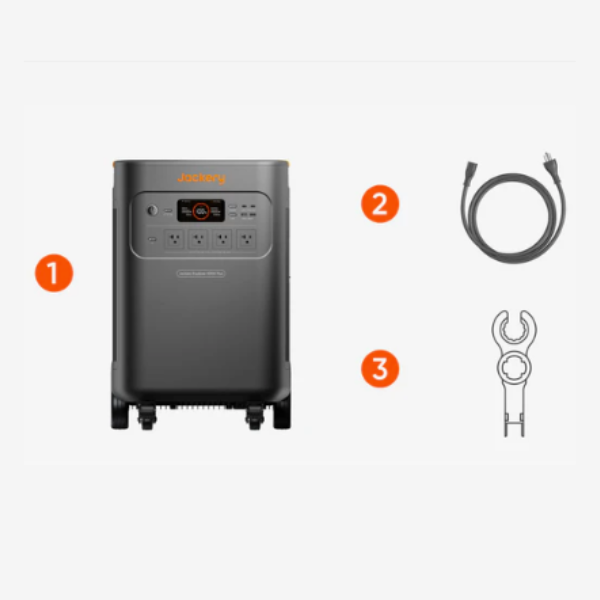

Jackery 5000 Plus Base Unit

  1. Jackery Explorer 5000 Plus*1
  2. AC Charging Cable*1
  3. MC4 Wrench*1
