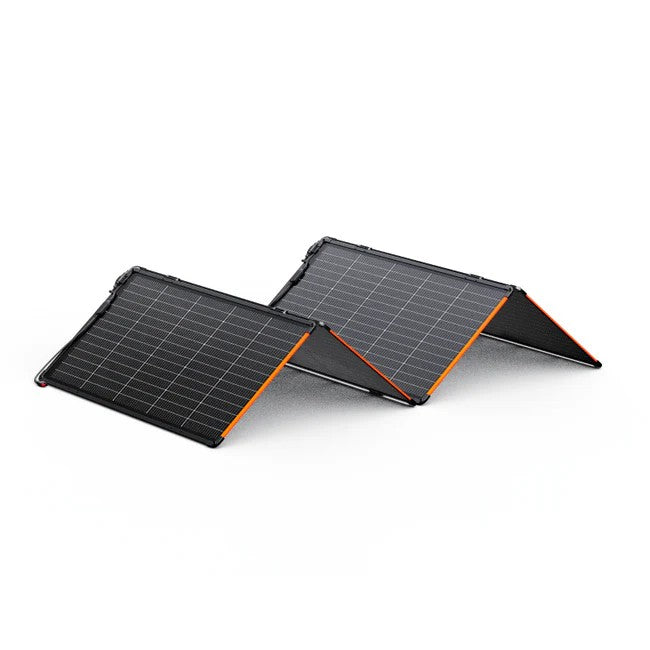

• Jackery SolarSaga 340X solar panels folded out in a freestanding configuration for outdoor charging.

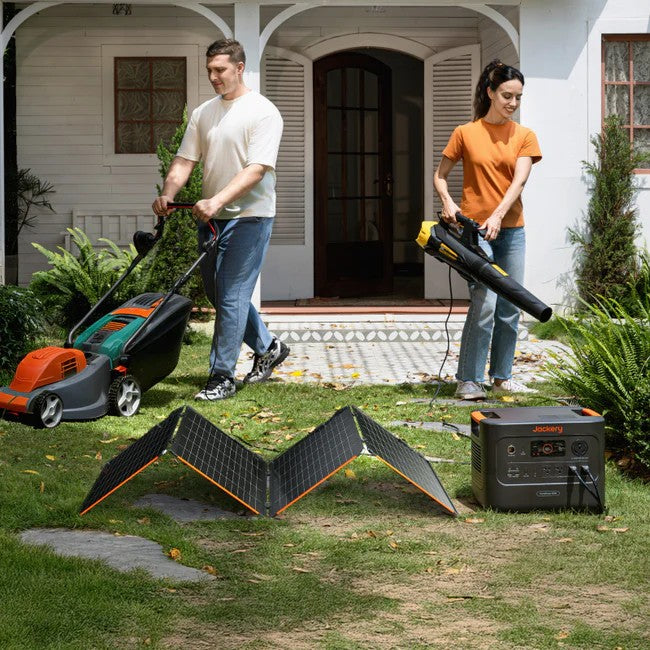

  • Jackery SolarSaga 340X solar panels powering a portable power station during outdoor yard work.

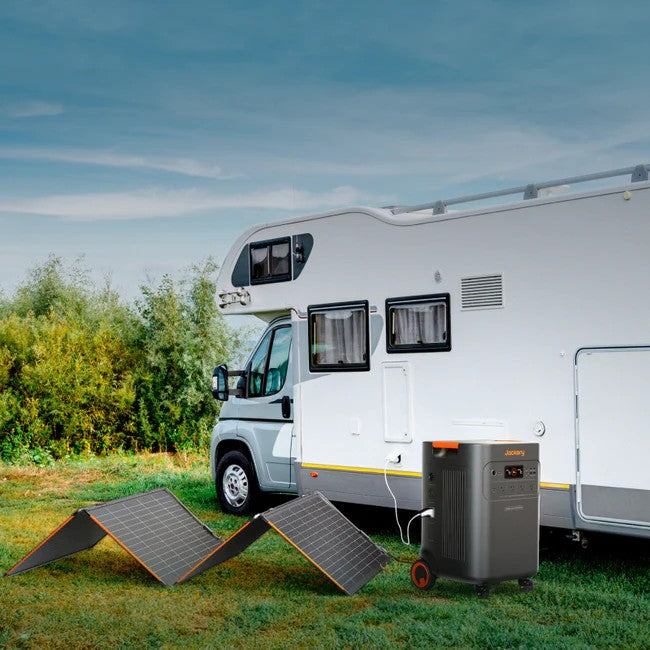

  • Jackery SolarSaga 340X solar panels connected to a power station beside an RV parked in the sun.
1 4

Jackery

Jackery SolarSaga 340X Solar Panel

Jackery SolarSaga 340X Solar Panel

$749.00 CAD
$999.00 CAD $749.00 CAD
Sale Sold out
Shipping calculated at checkout.

Meet the Jackery SolarSaga 340 X, a next-generation solar panel designed for serious off-grid and emergency power applications. Delivering up to 340 watts of high-efficiency solar charging, the SolarSaga 340 X combines advanced TOPCon cell technology, bifacial energy capture, and an M-shaped stand for maximum stability and sunlight absorption.

Built for all-weather performance, the 340 X features an IP68 waterproof rating and operates reliably across extreme temperatures from -40 °F to 185 °F. Its modular design allows you to connect multiple panels for faster charging or expanded energy setups—ideal for cabins, RVs, home backup systems, or remote worksites.

Lightweight, durable, and engineered for maximum efficiency, the SolarSaga 340 X is your gateway to clean, independent power—anywhere the sun shines.

Features

High-Power 340 W Output: Generate substantial solar energy for home, RV, or off-grid use with advanced TOPCon solar cells.

Dual-Sided Efficiency: Bifacial design captures sunlight from both sides for up to 25% higher energy conversion.

Expandable, Modular Setup: Combine panels easily for scalable solar capacity—ideal for DIY home or outdoor systems.

Extreme Weather Performance: IP68-rated waterproof and dustproof protection withstands harsh rain, wind, and dust.

Wide Temperature Range: Reliable operation from -40 °F to 185 °F (-40 °C to 85 °C) for year-round performance.

Stable M-Shaped Design: Durable folding frame ensures optimal panel angle and stability on uneven ground.

Certified Safety & Warranty: Fully IEC-certified with a 5-year manufacturer warranty for peace of mind.

Broad Compatibility: Works seamlessly with Jackery Explorer 5000 Plus, 3000 Pro, 2000 Plus, 2000 v2, 1000 Plus, 1000 v2, and 600 v2 power stations.

Detailed Specifications

General
  • Weight: 6.35 ± 0.45 kg (14 ± 1 lb)
  • Waterproof: IP68
  • Operating Temperature Range: -40 °C to 85 °C (-40 °F to 185 °F)
  • Warranty: 5 Years
Solar
  • Maximum System Voltage: 600 VDC
  • Maximum Reverse Current: 15 A
  • Bifaciality Coefficient (back/front): Pmax > 80%, Voc > 97%, Isc > 80%
  • Voltage Temperature Coefficient: -0.26% / °C
  • Power Temperature Coefficient: -0.32% / °C
STC (1000 W/m², 25 °C, AM 1.5)
  • Peak Power (Pmax): 340 W ± 5%
  • Open Circuit Voltage (Voc): 48.9 V ± 5%
  • Short Circuit Current (Isc): 8.68 A ± 5%
  • Power Voltage (Vmp): 42 V ± 5%
  • Power Current (Imp): 8 A ± 5%
BNPI (Front 1000 W/m², Rear 135 W/m², 25 °C, AM 1.5)
  • Peak Power (Pmax): 372 W ± 5%
  • Open Circuit Voltage (Voc): 49.6 V ± 5%
  • Short Circuit Current (Isc): 9.24 A ± 5%
  • Power Voltage (Vmp): 42.8 V ± 5%
  • Power Current (Imp): 8.56 A ± 5%
Dimensions
  • Folded: 998 × 525 × 62.5 mm (39.3 × 20.7 × 2.5 in)
  • Unfolded: 1562 × 981.5 × 294 mm (61.5 × 38.6 × 11.6 in)

What's Included

SolarSaga 85W Panel x 4
Hinge x 6
Ground Stakes x 6
Hex Key
Screw x 26
Anderson Rubber Plug x 2
Compass Carabiner
Solar Charging Cable

Warranty

5 Year Warranty

Carbon-neutral shipping on all orders
View full details

Jackery Solarsaga 340X Features

Stable & Portable Design

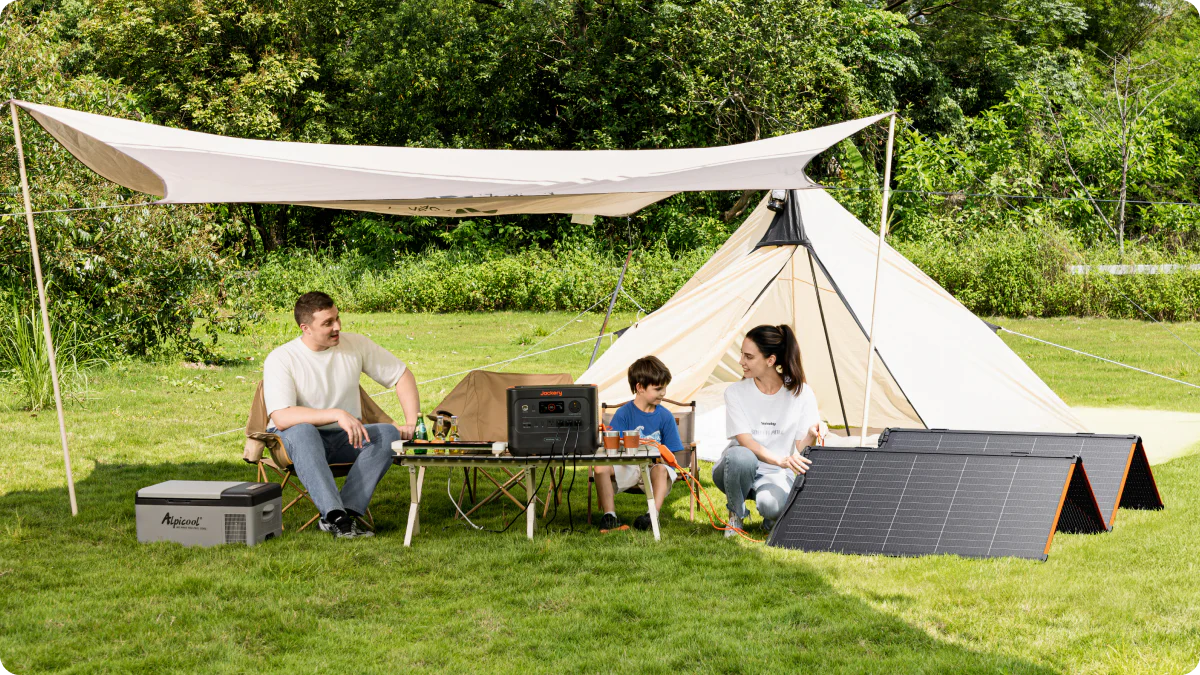

An M-shaped structure with ground stakes ensures stability in strong winds. Paired with a carry bag, it’s easy to store, move, and power on the go.

Panel Construction

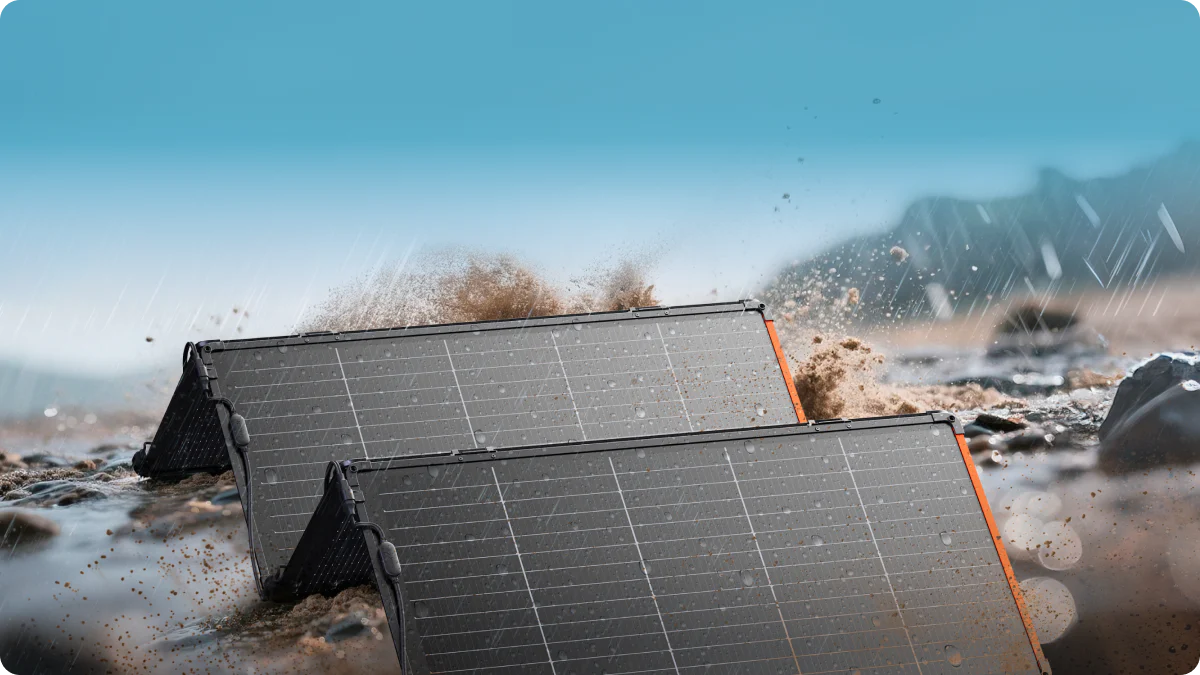

Featuring industry-leading TOPCon cells with up to 25% conversion efficiency, the bifacial design captures sunlight on both sides for higher output—even in mornings, evenings, or cloudy weather. With IP68 dust and water resistance and operation from –40°F to 185°F (–40°C to 85°C), the 340X stands strong against rain, humidity, dust, and extreme climates.

25% Bifacial Efficiency & All-Weather Protection
