Planar 2D 2kW 12V Fixed Diesel Heater Kit
Planar 2D 2kW 12V Fixed Diesel Heater Kit
-
Craze Outdoors Advantage
- 5 - Star Google Reviews
- Free Shipping Over $75
- Same day shipping
- 30 Day Price Match
- Easy 30 Day Returns
The Planar Diesel Air Heater Autoterm 2D-HA comes with the analog or digital controller, basic installation kit and Operational Manual. The heater is equipped with a self-adjusting system for operations at high altitudes up to 2500 m / 8200 ft.
Refer to Operation Manual for installation and operation procedures.
For heating up to 25 ft. boats, commercial trucks, campers and vans.
Specifications
Specifications
Heat Output; kW (BTU): 0.8 – 2.0 (2.700-6,850)
Fuel Consumption; l/h (gal/h): 0.10-0.24 (0.03-0.06)
Nominal Supply Voltage; V: 12
Power Consumption; W (A): 10-29 (0.8-2.42)
Airflow Rate; m3/h: 34-75
Weight; kg: 7.0
Operating Modes: Manual / Automatic
Weight 6.5 kg
Dimensions 41 × 36 × 17 cm
Voltage: 12V

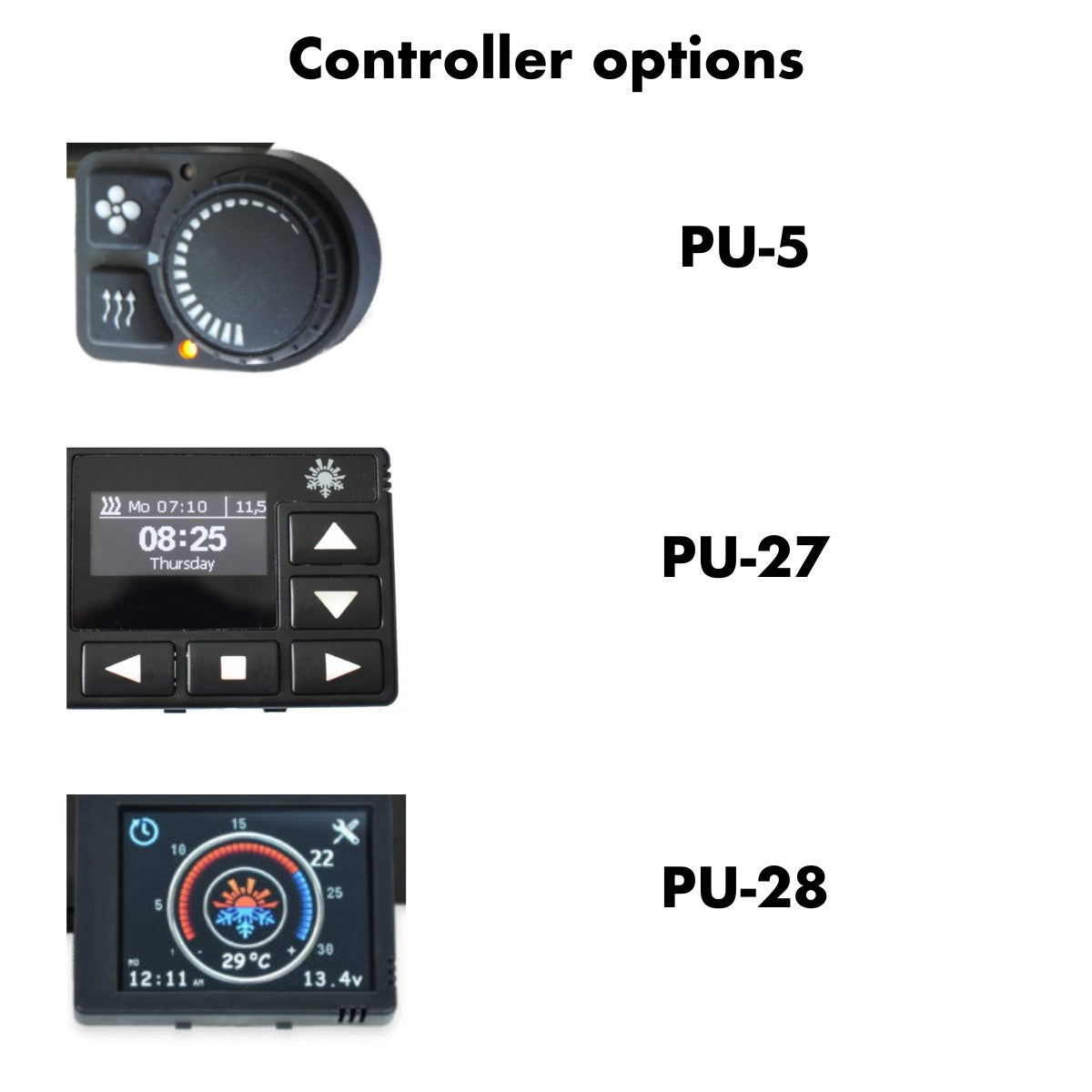

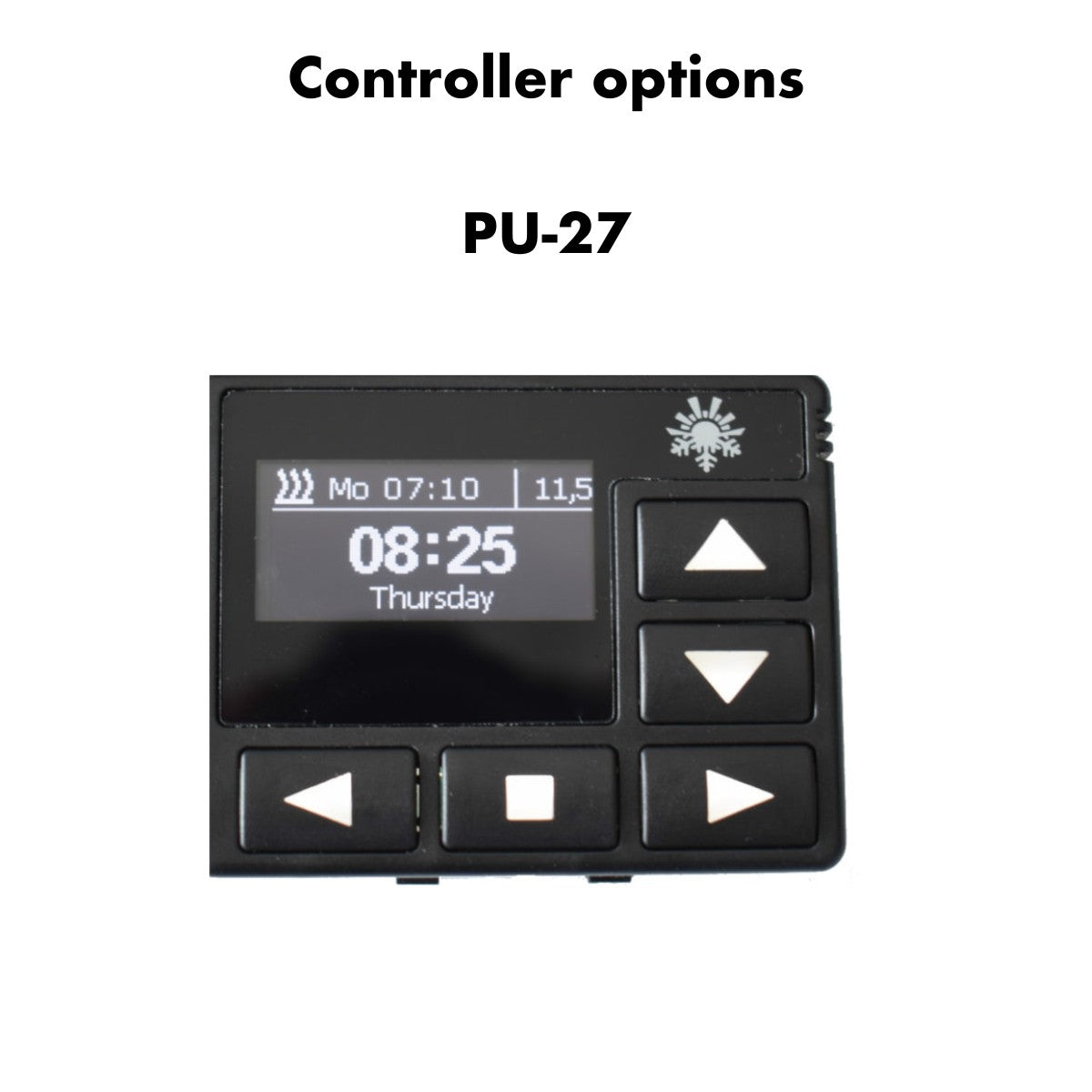

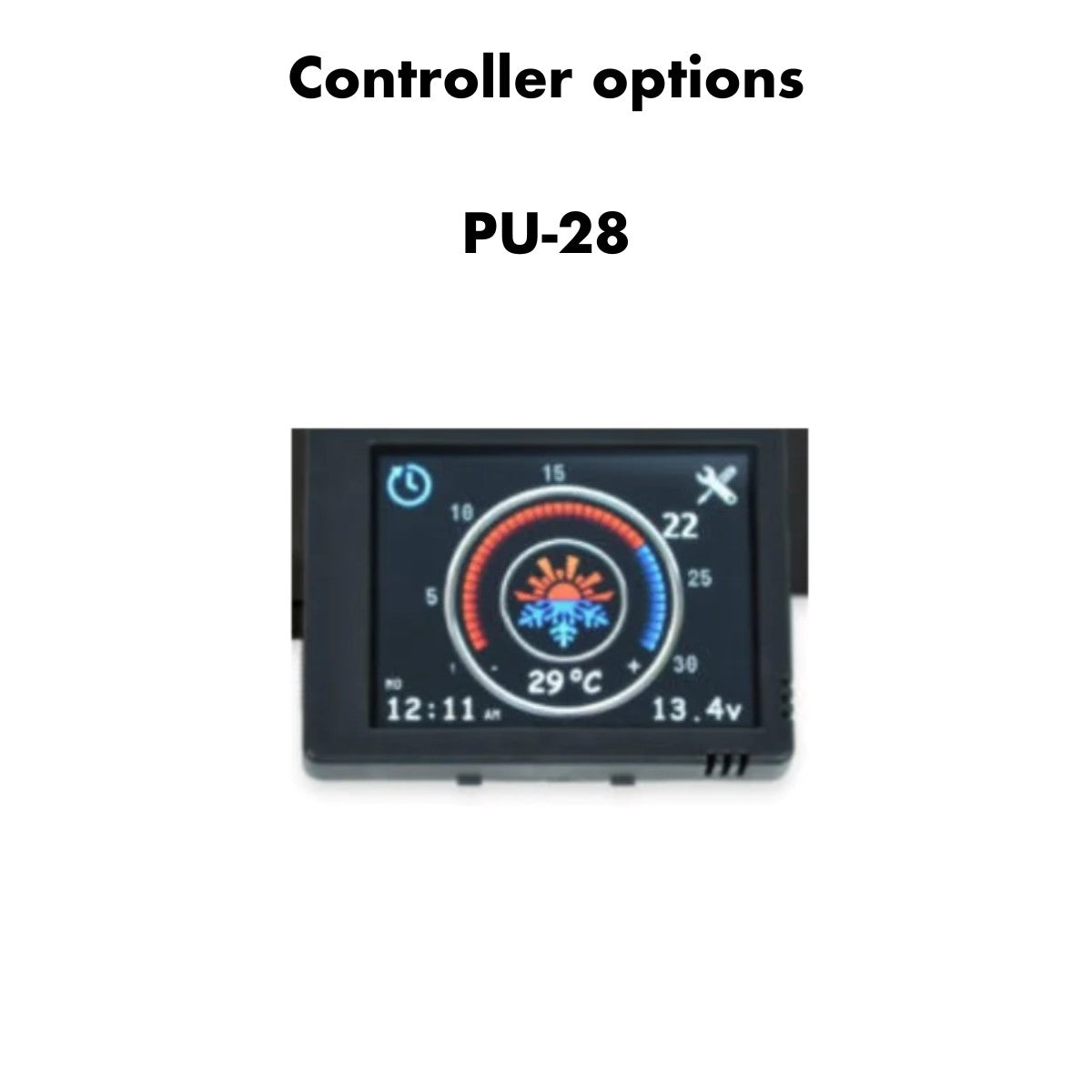

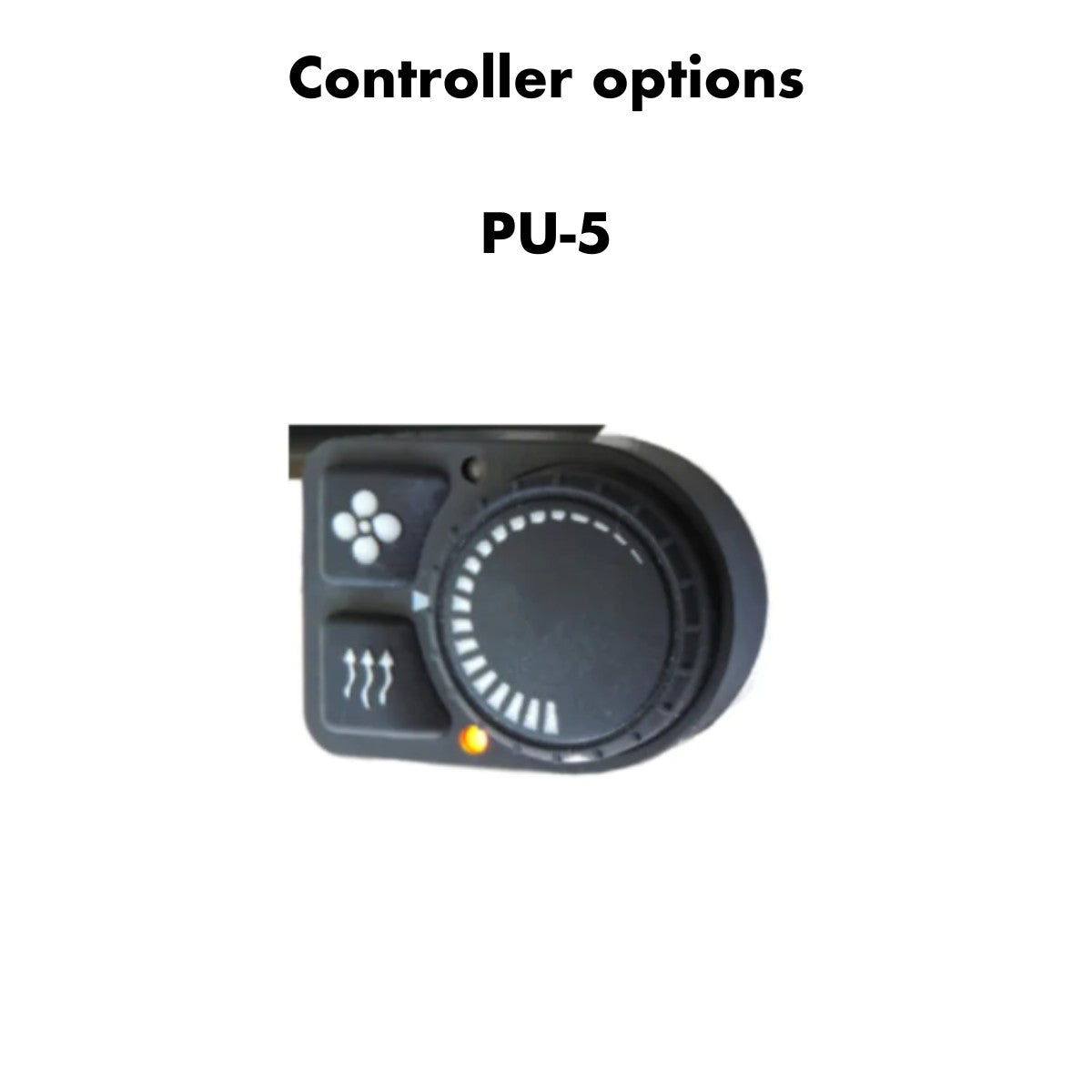

Controller: One of: PU-5, PU-27, PU-28

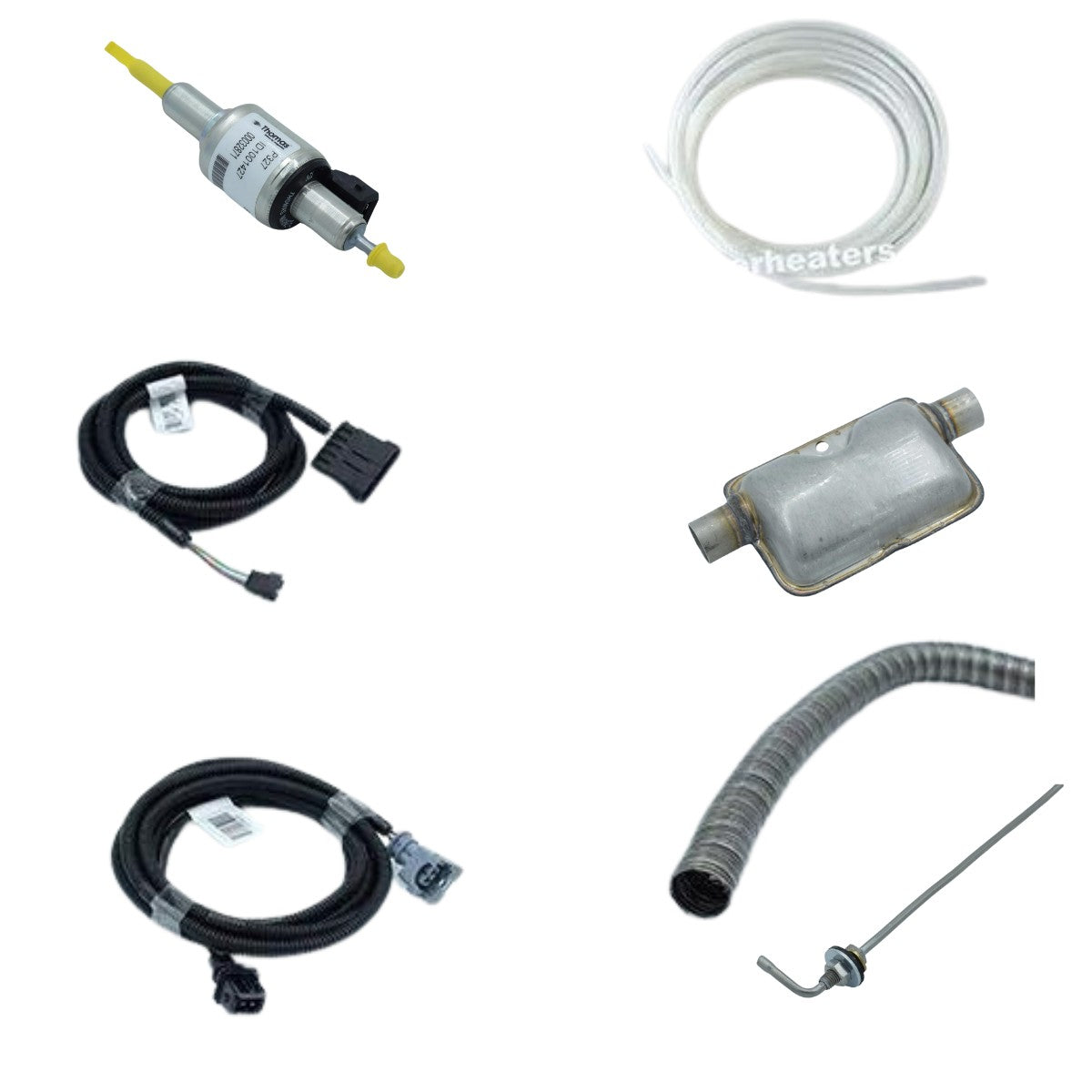

What's Included
What's Included

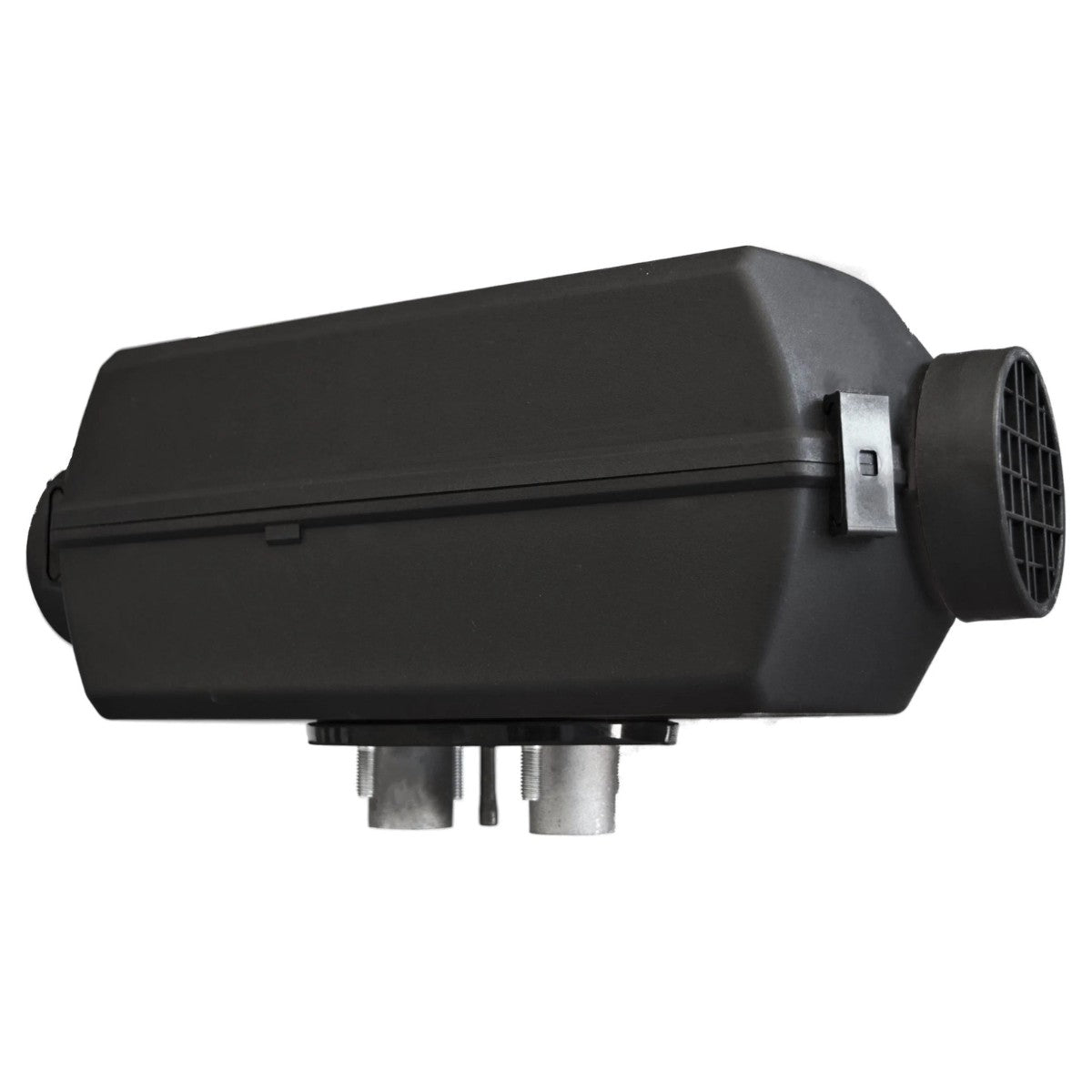

Autoterm 2D – Diesel Air Heater
Inline Metering Fuel Pump
Fuel Line: 5.5M
Fuel Pick-UP Stand Pipe
Stainless Steel Flexible Exhaust - 3 FT
Exhaust Clamp

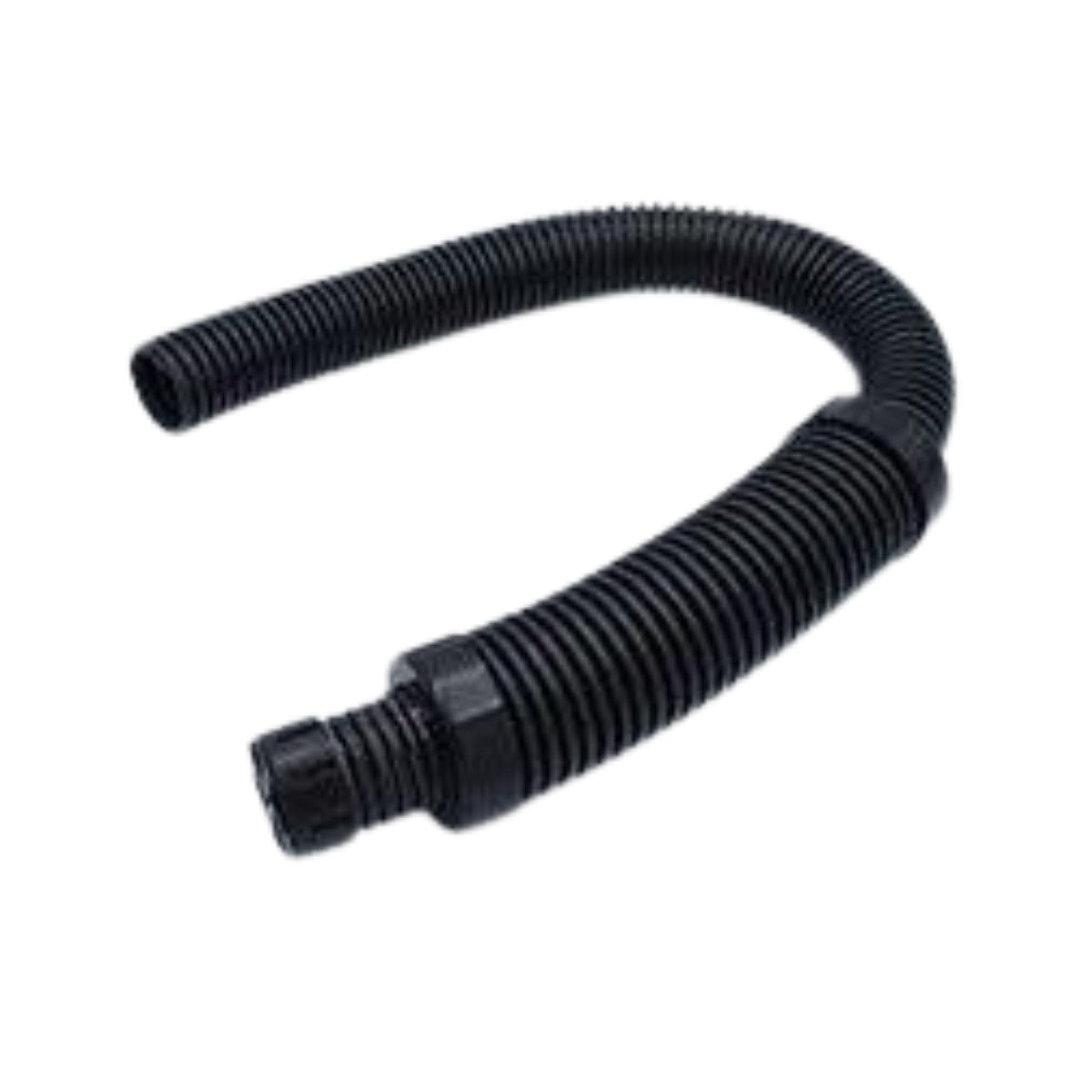

Combustion Air Intake Hose 2 FT
Remote Wired Controller
Fuel Pump El. Cable - 6 M.
Power Cable with Fuses
Set of Fasteners & Brackets
